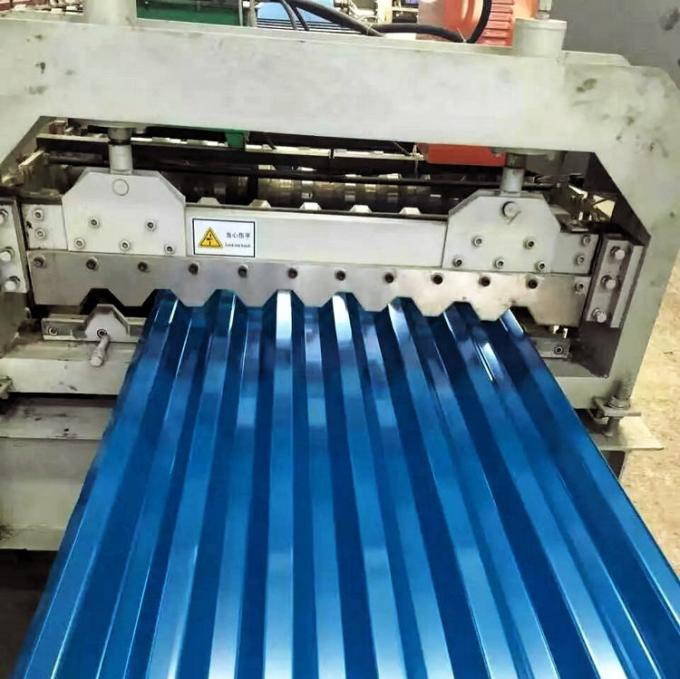

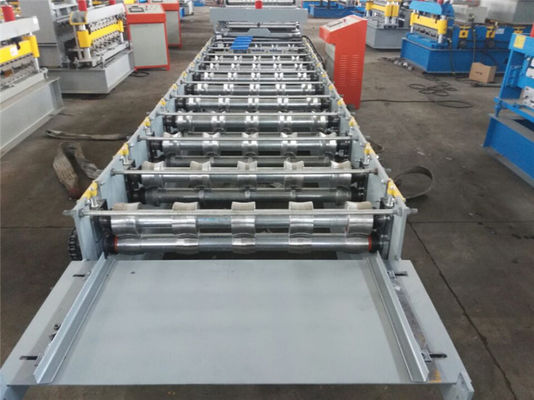

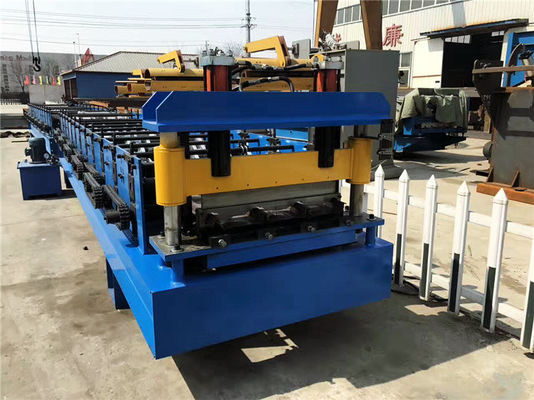

Galvanized Steel Roofing Corrugated Sheet Roll Forming Machine 13-16 Rows
Description of roll forming machine
| Machine description | Quantity | Delivery time | Container type |
roll forming machine prices |
1SET |
45 working days after receiving deposit |
20GP |
Components of roll forming machine
| No. | Name | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | Main forming machine | set | 1 |
| 3 | PLC control system | Set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 5 | post cut | set | 1 |
| 6 | electric motor | set | 1 |
| 7 | output table | set | 1 |
parameters of roll forming machine
| NO. | Items | parameters | Remark | |
| 1 | Suitable Material | type | GI | |
| Width | 1200mm | Custom | ||
| Thickness | 0.3-0.8mm | |||
| Product specifications | length | any length | ||
| length tolerance | ± 1mm | |||
| 3 | Working Speed | 8m-25m/min | Standard machine | |
| 4 | Control System | PLC | Custom | |
| 5 | Total Power | 5.5-11 KW | ||
| 6 | Total Weight | About 5-7.5 T | Up to final design | |
Our Service
1. 1 year and life-long maintenance;
2. Installation and debugging:We will send professional engineer to make installation and debugging,buyer pay our engineer eachi one 50USD/day,and provide accommodation ,food and the round-trip ticket fee;
3. Installation Days:about 5-7 days
Our machine is definitely guarantee for 12 months. If there is any problem,we will send the technician to fix the problem ASAP!
