Stud And Track Roll Forming Machine HIgh Speed Steel GI Omega Furring Channel
1. Specifications of C89 Light Steel Frame CAD Roll Forming Machine for Prefabricated House
1)Main Techincal Data:
| Size | 3700*800*1100mm |
| Weight | 4000KGS |
| Main Servo Motor Power | 5.5KW |
| Hydraulic Motor Power | 5.5KW |
| Forming Steps | 9 steps for reshaping |
| Processing Speed | About 80 Square Meter Per Day |
| Voltage | 380V/50HZ/3PH |
| Lip of C Profile | 9mm |
| Tolerence Of Forming | 0.75mm |
| Forming Thickness | 0.8mm -1.2mm |
| Height | 38mm |
| Width | 89mm |
2) Main Accessories:
(1) .Main Forming Machine;
(2) .Hydraulic Strip Uncoiler;
(3) .Hydraulic Punching Device;
(4) .Hydraulic Motor System;
(5) .IPC Computer Controlling System with Product Software;
(6) .Hydraulic Forming Cutter;
(7) .Automatic Printing Device;
(8) .Vertex BD Design Software;
(9) .Run Out Table;
(10) .Tools;
(11) .Operation Manual.
| Standing Cold Light Keel Roll Forming Machine | ||
| Items | Specifications | |
| Material of coil | Material Width | 120-300mm |
| Material Thickness | 0.3-3.0mm | |
| Uncoiler | 3 tons manual | |
| Forming system | Rolling Speed | 10-30m/min |
| Roller Stations | 12 stations up to final design | |
| Roller Material | alloy steel GCr15 | |
| Shaft DIA | D70mm | |
| Main Motor Power | 7.5kw | |
| Hydraulic cutting Power | 4kw | |
| Cutting system | Material Of Cutting | Gcr12 with quench treatment |
| Hardness | HRC55-58 | |
| Tolerance | +-1.5mm | |
| Electrical control system | Electric Source | 380V, 50HZ,3 phase |
| customized | ||
| Control System | PLC (Panasonic) | |
| Way Of Drive | chain | |

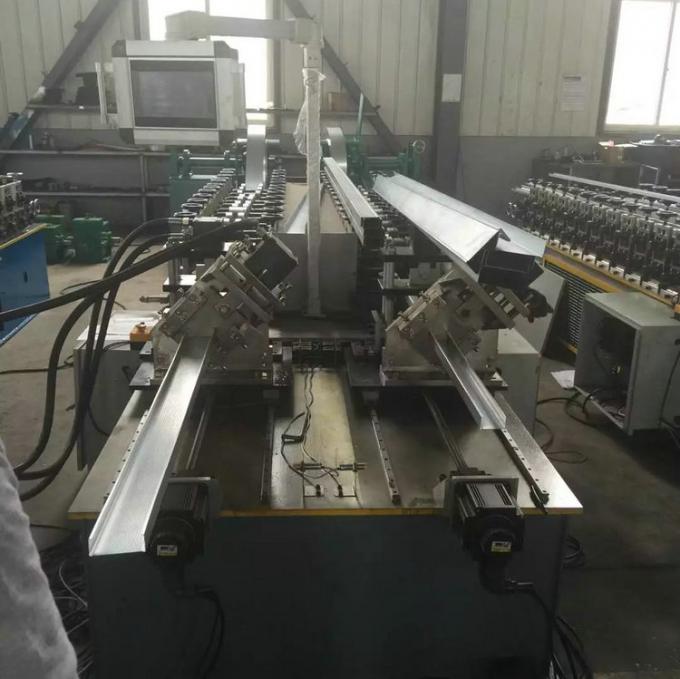

2. Pictures of C89 Light Gauge Steel Prefabricated House Frame CAD Roll Forming Machine
