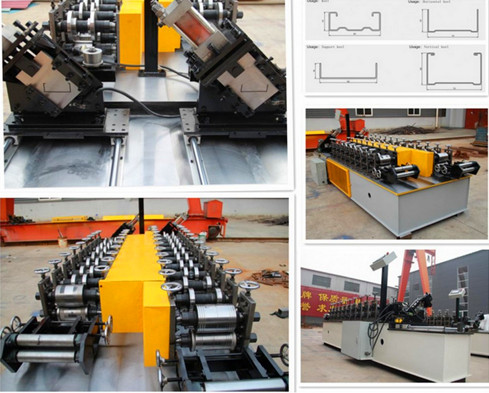

Ceiling Drywall Steel Stud And Track Roll Forming Machine U Channel
Decoiler:
Usage: It is used to support the steel coil and uncoil it in a turntable way.
Inner diameter:350-450mm
Outer diameter:450mm
Coil width:300mm
Capacity:1.5T
Hydraulic oil pump
Advanced hydraulic system from Taiwan
Usage: It is used to provide power for cutting devices.
Power: 3kw
PLC control station
Usage: Automatic length and quantity measurement.
Screen: touch screen
Frequency:Delta
PLC control
PLC:Delta
Run out table
1 set with 3 meter’s long.
Process Flow
De-coiling →feedinig→forming→step-formed mechanism →cutting →product
Parameter
| 1 | Model No. | Keel Roll Forming Machine |
| 2 | Thickness | 0.3-0.8mm |
| 3 | Coli material | GI |
| 4 | The bearing capacity of manual decoiler | 6.5 tons |
| 5 | shaft material | 45#steel |
| 6 | Out diameter | Customized |
| 7 | numbers of forming steps | Customized |
| 8 | transmission | chain transmission |
| 9 | Forming speed | 10-15m/min |
| 10 | main motor power | 3kw |
| 11 | voltage | 380V50HZ Three-phase or as required |
| 12 | dimension | 5*1.3*1.3 |
| 13 | cutting | hydraulic cutting |
| 14 | blade material | Cr12 steel with quenched treated 60-62°c |
| 15 | control system | PLC(Delta) |
| 16 | length tolerance | ±1mm |
| 17 | spare parts |
1 easy demaged parts:conk 2pcs, fuse-link 4pcs 2 rubber mat: 1 pcs 3 bolt spanner: 1 pcs |
| 18 |
The whole line including: Manual decoiler, roll forming machine, hydraulic station, hydraulic cutter, PLC control system, run-out table. |
|
