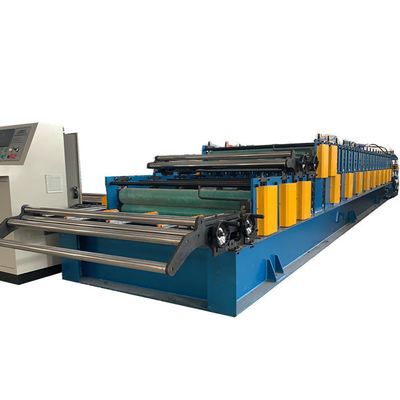

Roofing Sheets Used in House Construction Tr40 Metal Roofing Sheets Machine is designed to make the roofing sheet in batch fully automatically. Profile is intended for covering walls in industrial objects. It is made of galvanized and steel galvanizeg plasticized sheet metal. According to tolerance EN 10143. Here is one drawing profile for your reference:

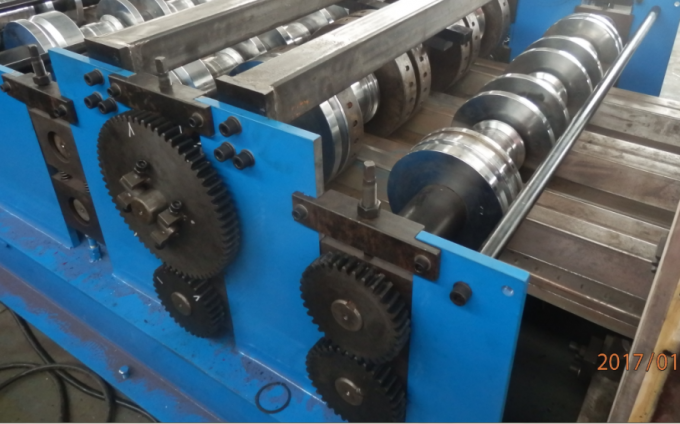

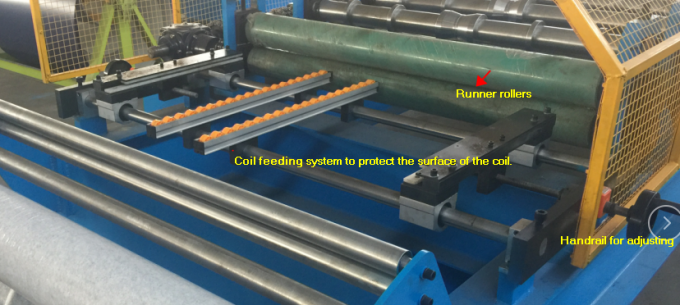

| At the first two roller station, put the gear outside to make sure more powerful coil feeding. |
 |

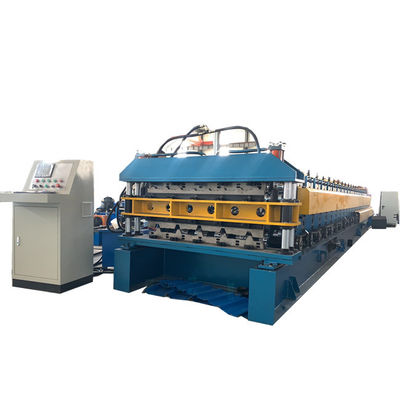

| Main Roll Forming System(picture 3 ) |
| Usage |
In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped. |
| MACHINE |
About8500х1650х1500mm |
| Weight of main part |
About 10.5 T |
| Voltage |
380V/50HZ3Phase (as customer’s request) |
| Roller fixer |
Middle plate welded |
| Frame |
400 H steel welded |
| Frame thickness |
20mm |
| Drive mode |
Chain 1.25 |
| Material of rollers |
45# steel, queening and then surface hard chromium plating. |
| Material of shafts |
45# steel |
| Diameter of shafts |
Φ80mm |
| Number of rollers |
First layer=20 rollers station
Second layer=24r roller station
|
| Note as to the first layer, the height just 18mm no need to add gear. And to the second layer, as the wave height is 35mm, and there are 24 roller station, so there will be 20 roller station with the bearing, and then the Max mold size diameter is around 230mm. |
| Main power |
15 kw, the motor brand is Siemens |
| Note : the machine design using the separated molding rolling forming and before shearing there are two more roller station to rolling whole mold to make sure the shape beautiful. |
Arched profiled sheets TR-40
Arched bend profiled sheets TR-40 is used for covering arched roofs.
It is designed to improve roof appearance, facade, arches and other detail on objects.

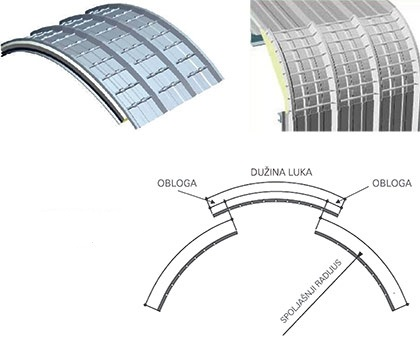

Arch bending of profiled sheet is done at the object according to projected radios.
Arched profiled sheets TR-40 hydraulic bending machine could be designed like this:
For those machines, if you want to know more information, please contact us at any time.
