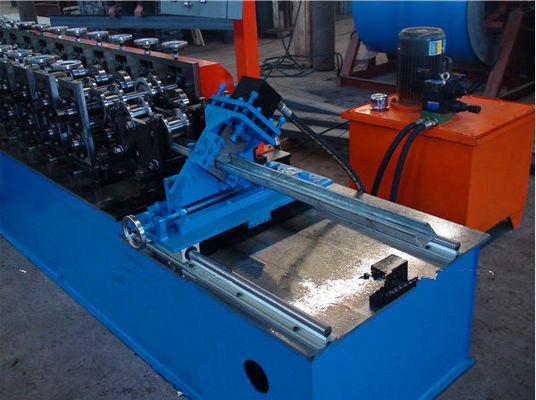

Drywall Metal Stud And Track Roll Forming Machine , portable cold roll forming machine
Product Description
The finished product of roll forming machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
| No. | 2017 New Model High Speed Light Gauge Steel Keel Roll Forming Machine | |
| 1 | Suitable material | PPGI/Aluminium sheet/galvanized sheet/various sheet plates |
| 2 | Thickness of coil sheet | 0.2-0.8mm |
| 3 | Coil width | 100mm |
| 4 | Effective width | 75mm |
| 5 | Material of main frame | 600H steel |
| 6 | Diameter of Soild shaft | 50mm, high grade 45# steel |
| 7 | Roller |
High grade 45# steel, quenched and tempered treatment, hard chrome plated 0.05-0.07mm |
| 8 | Thickness of middle plate | 30mm |
| 9 | Forming station | 12 rows |
| 10 | Drive type | By chain(1.0 inch), link bearing model 6210 |
| 11 | Power of main motor | 5.5 kw, Lichao, Shanghai, with reducer |
| 12 | Sidewall connection bar | 25mm, zinc plated |
| 13 | Forming speed | About 12-18m/min |
| 14 | Hydraulic pump station | 5.5 kw, 40# hydraulic oil |
| 15 | PLC | DELTA(TAIWAN)/Mitsubishi |
| 16 | Material of razor blades | Cr 12, quenching 58-62℃ |
| 17 | Frequency converter |
It has the advantage of slowing down before cutting, to ensure the length accuracy ±1mm, far better than industrial standard ±3mm. |
| 18 | Switch | CHNT |
| 19 | Frequency changer | SAJ |
FAQ
1. You are the manuafacturer or trading company ?
A: We are the professional manufacturer , and we have more than 20 years professional experiece in the field of roll forming machine.
2. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced team to work out the most suitable design and production plan
for the machine.
3. How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation of the machine.
4.What policy of your garentee?
A: Within the One-YEARS period, we could supply you the replacement parts free of charge
for any damaged parts caused by quality problems after two years,you need to buy by factory cost.
