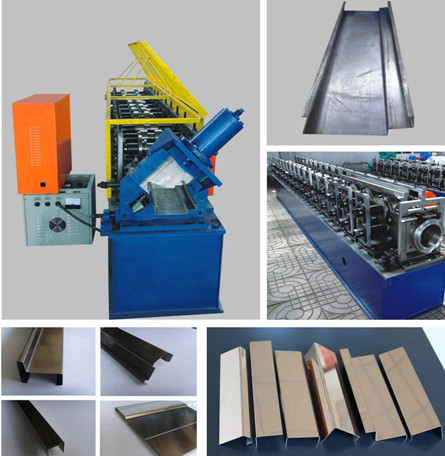

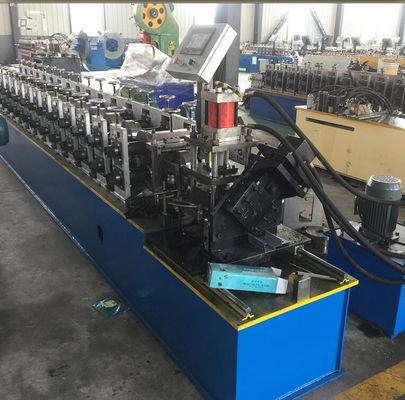

Galvanized Steel Roller Shutter Door Frame Roll Forming Machine Window Type
Application
It can be used in the gate,inside door,window frame;nice appearance, durable
| No. | Main Parameter of Door Frame Roll Forming Machine | |
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 220/330/350mm |
| 3 | Rollers | 18rows |
| 4 | Dimensions | 9800*1450*1510mm |
| 5 | Power | 7.5+5.5kw |
| 6 | Thickness of the plate | 0.6-1.2mm |
| 7 | Productivity | 10-15m/min |
| 8 | Diameter of the roller | Φ80mm |
| 9 | Weight | About 4.2T |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Material of the cutting plate | Cr12 |
| 12 | Hydraulic | 40# |
| 13 | Processing precision | Within 1.00mm |
| 14 | Control system |
PLC control
|
| No | Technical Specification | |
| 1 | Manual Uncoiler | Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:1.2T,Inner diameter: 500-508mm |
| 2 | Feeding Table | Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron. |
| 3 | Main Roll Forming Machine | Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped |
| 4 |
Hydraulic System |
Power:5.5kw,Hydraulic oil: 40# |
| 5 | Shearing Mechanism |
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. |
| 6 |
Output Table |
It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.
|
Our Services
1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
