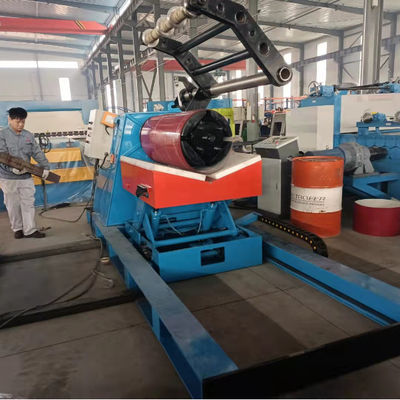

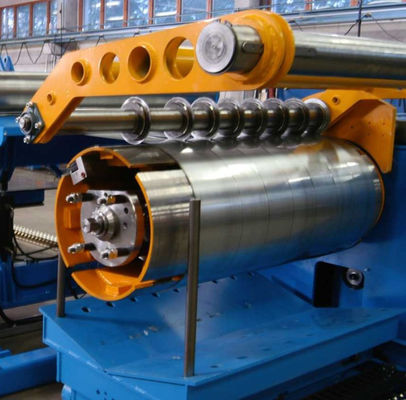

Recoiler for Simple Metal Coil Slitting Production Line

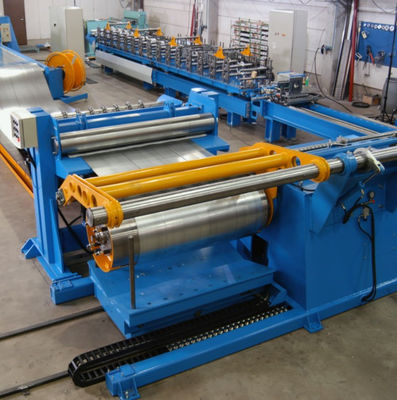

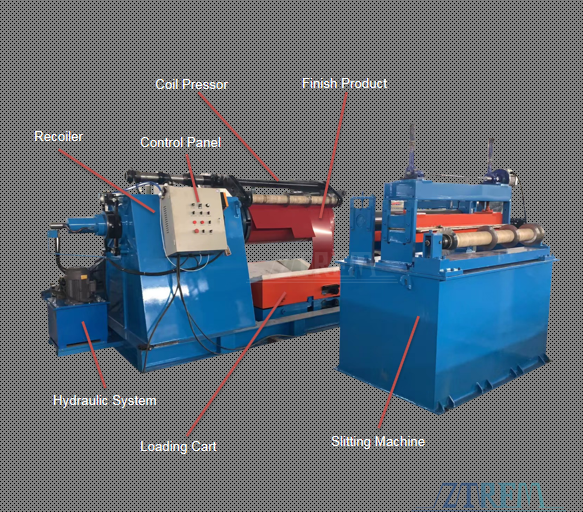

The functionality for slitting machine is to slit PPGI coils, aluminum coils, galvanized coils, stainless steel, carbon steel and other coils into several small strips.The slittling line mainly consist of an uncoiler, leveling system, slitting system, shearing system, damping structure and recoiler. We can design and manufacture different specification according to customers specifications. In this part, we wil mainly introduce the metal slitting line recoiler part.
Specifications od the recoiler supports :
| Width | 1250mm |
| Thickness | 0.4 – 1.0mm |
| Rollers | 3 up; 4 down; 2 input |
| Shaft | φ110mm |
| Wall Panel | 25mm; A3 400H Steel Frame |
| Power | 7.5kw |
| Speed | 16m/min |
| Hydraulic Power | 5.5kw |
| Drivetrain | Chain |
| Cutting & Slitting Blade | Cr12 |
| Slitting | Max 10 |
| Electric | 220V 60Hz 3 Phrase |
