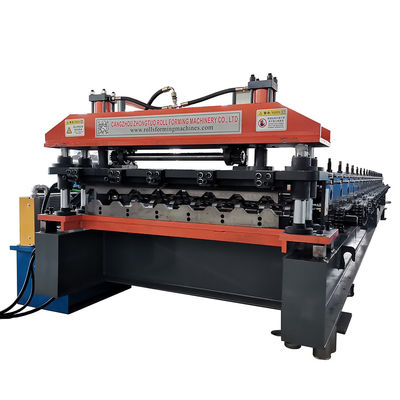

R101 trapezoidal sheet roll forming machine for Mexico

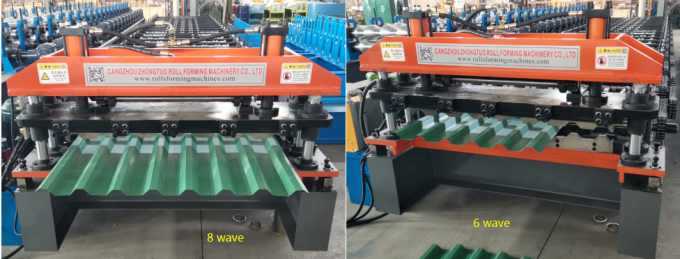

R101 trapezoidal sheet roll forming machine for Mexico is designed to make the metal roofing panel for Mexico to produce R101 popular roofing sheet. The metal roofing sheet machine we designed could use two input coil width 914mm and 1220mm, the working speed is around 15 to 20 meter per minute. The following part, let us check the drawing profile. When you use the input the coil width of 914mm, it has 6 waves. When you use the coil width of 1220, it has 8 waves. Simple adjusting the leveling beach and then it can switch from those two different input coil width. This machine is popular in Mexico, Guatemala, Honduras, Costa rica, Colombia… If feeding this roll former raw material 914mm or 36 inch width, machine will make R72. If feeding 1220mm or 48 inch, machine will make R101only feed different width raw material, no need to change machine.
R101 trapezoidal sheet roll forming machine Parameters
| NO | Type | Specification | |
| 1 | Raw material | Type | PPGI/GI |
| Material width | 1220 mm | ||
| Thickness | 0.3-0.6 mm | ||
| 2 | Decoiler | Operation | Manual |
| Weight apacity | 5 Tons | ||
| 3 | Roll Forming Machine | Roller station | 16 steps |
| Diameter of shaft | 70 mm-0.01~0.03 | ||
| Shaft Material | 45# with 0.05mm chrome | ||
| Roller Material | 45# Forged Steel | ||
| Transmission | Gear & Sprocket | ||
| Bearing Type | 6210 | ||
| Under Frame | H-beam | ||
| Sidewall Frame | 16 mm Steel Plate | ||
| Driving Type | Servo Motor 7.5KW | ||
| Cutting Type | Guide Pillar with Electrical Motor 3.0KW | ||
| Cutting Blade | Cr12Mov | ||
| Voltage | 380V/50HZ, 3 phase | ||
| Working speed | 20-25 m/min | ||
| 5 | Control box | Electric box | Import Brand PLC control system, inventer |
| PLC brand | Delta/Siemens/Pansonic | ||
| Inverter brand | Delta/Siemens/Sanjing | ||
| Language | Chinese / English | ||
More details of R101 trapezoidal sheet roll forming machine:
1. The leveling part, we designed with the plastic rollers to protect the surface of the coil. We also add the manual cutter for cut the untidy part or you can cut the coil at any place.

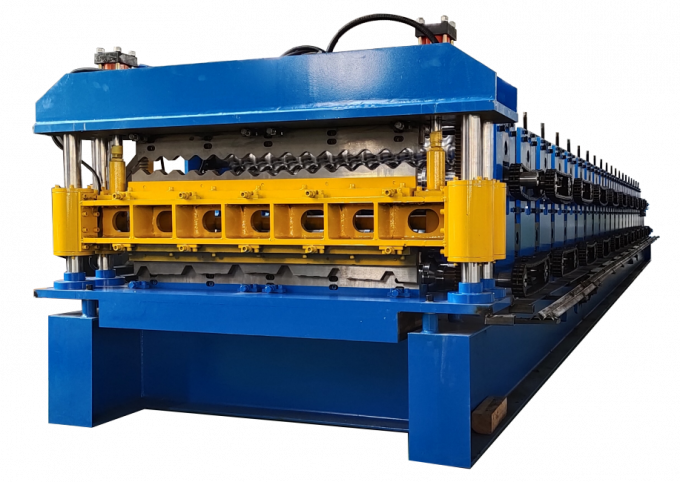

R101 trapezoidal sheet roll forming machine also could be designed to double layer types, add other profiles then the machine will be like the following pictures:
Advantage of double layer rolling forming machine:
Save space for freight and factory installation.
Disadvantage:
One time only forming one layer, it is suitable for production not big.
If production big, we suggest you buy two individual machines, they can work at same time.
For this machine, if you want to know more information, please contact us at any time.
R101 trapezoidal sheet roll forming machine for Mexico working video for your reference:
