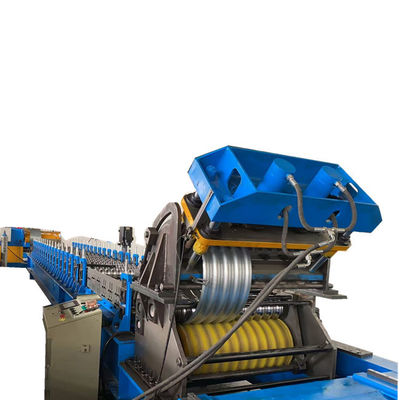

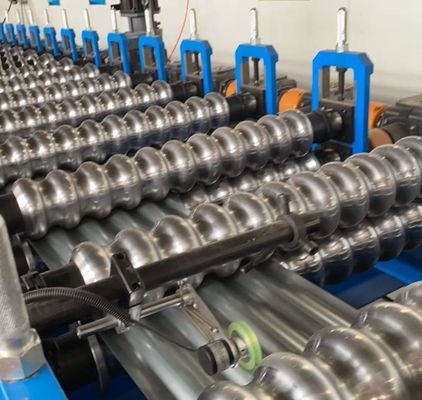

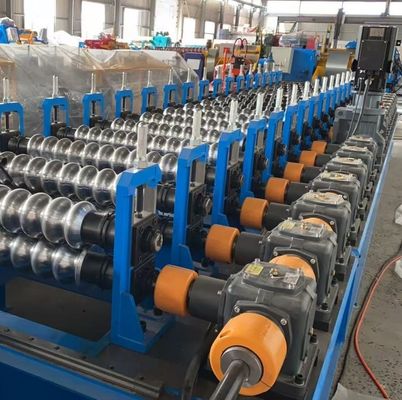

Raised Garden Beds Profile Rolling Forming Machine
Raised Garden Beds Profile Rolling Forming Machine is designed to make the garden beds profiles in batch fully automatically. This machine is customized, it can be used for making Herb Garden Planter Outdoor, Metal Garden Bed, Raised Flower Beds Outdoor, Metal Planter Box for Flower, Ivory bed metal profile.

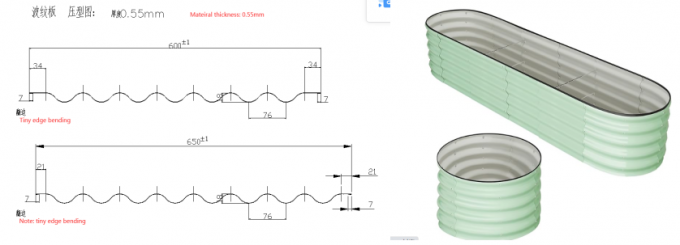

Metal raised beds
Galvanized metal raised beds are becoming some of the most popular garden beds out there. They’re durable, sturdy,
resistant to damage, can' t rot out like wood, and will last for decades. Garden beds provide ample drainage and the high sidewalls allow for deeper root growth and create a defense against unwanted weeds. Constructed with galvanized steel panels,garden beds will not rust, rot, and are mildew resistant.
Raised Garden Beds Profile Rolling Forming Machine
Machine design Idea:
The machine design it could have the following two types
1. Fixed width sizes type. In the following part, it is width variable, you can use it either wide coil or narrow coil.
2. Width adjustable type.
3. It also needs the bending machine to make the curving.
4. The machine working speed is 15 to 25 meter per minute.

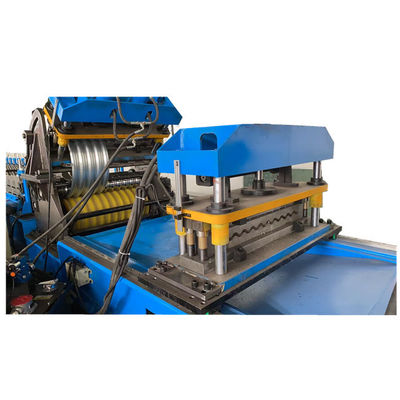

5. With online punching.
6. Decoiler you can choose manual one or hydraulic one.
Raised Garden Beds Profile Rolling Forming Machine features:
Pressing thickness: 0.35MM, galvanized sheet 235-350MPa
Effective width 287
Feed width
Hydraulic station motor 5.5KW
Transmission motor 7.5KW
Roller shaft diameter 70mm
Spindle material: 45 steel
Side panel thickness 22mm, integrated side panel
Machine base specification: 400H steel+14MM sealing plate, rear gantry milling, flat surface
20 sets of forming passes
The material of the roller is 45 #, and after precision machining, the surface is brushed and polished

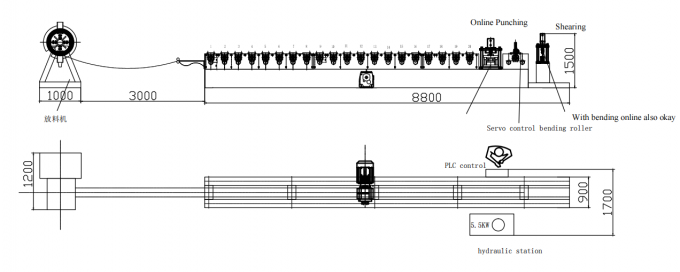

Raised Garden Beds Profile Rolling Forming Machine working flow:

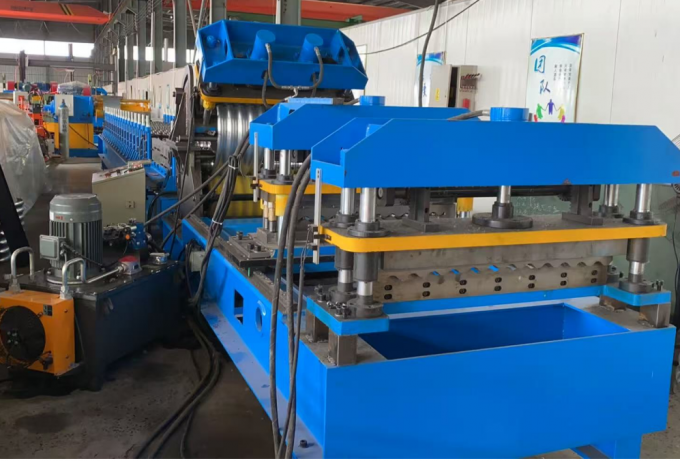

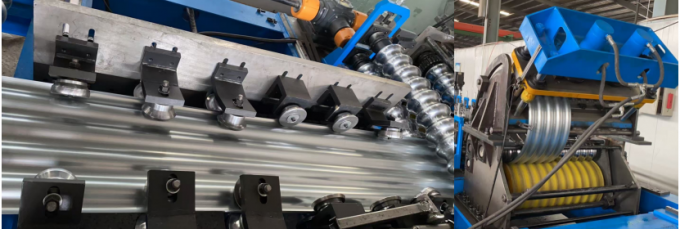

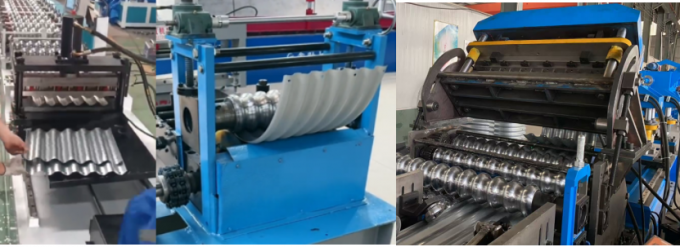

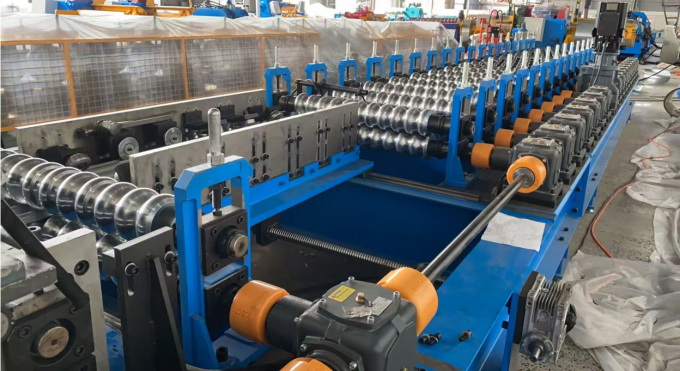

Raised Garden Beds Profile Rolling Forming Machine more details:

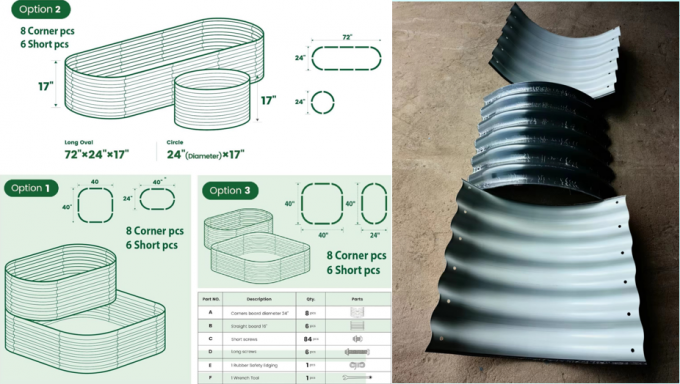

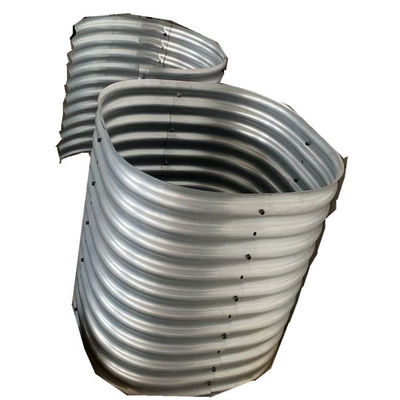

Raised Garden Beds Profile Application:
