Concrete Roof Tile Making Machine Hydraulic Cutting For Construction 14 Rows
1. what is the description of step tile roll forming machine
| Machine description | Quantity | Delivery time | Container type |
| step tile roll forming machine china | 1 SET | 40working days after deposit | 40GP |
2. what is the production process of step tile roll forming machine
Uncoiling--->Feeding material into machine-->Roll forming --->Measuring length --->Step formed--->Auto cutting--->Pruducts receving.
3. what is the specification of step tile roll forming machine
| Name | step tile roll forming machine |
| Material | Color steel sheet |
| Thickness | 0.3-0.8mm |
| Coil inner diameter | 450-550mm |
| Max coil out diameter | 1300-1600mm |
| Max coil width | 1250mm |
| Carrying capacity | 5T |
| Forming steps | 13rollers |
| Shaft diameter | 80 mm |
| Design type | pillar structure |
| Roller material | 45 # steel chrome plating chromium |
| Shaft material | 40Cr steel |
| Work speed | 4-12m/min |
| Transpor | by chain |
| Type of cutting | hydraulic |
| Cutting tolerance | whthin 1mm |
| Cutter | Gcr12 |
| Material of blades | Cr12 quenched |
| PLC | Delta |
| Counter | Omion |
| Voltage | as required |
| Dimension | 7000x1500x1910mm |
| Weight | About 5 T |
| Workers | 1-2 only |

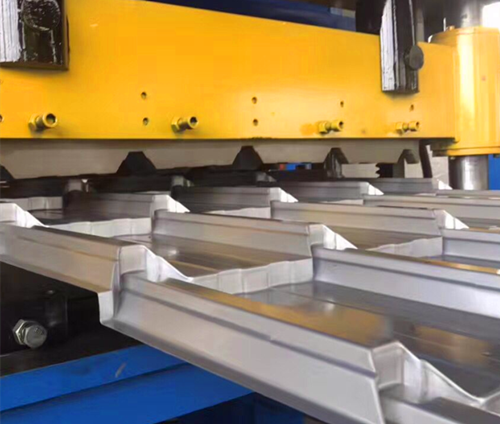

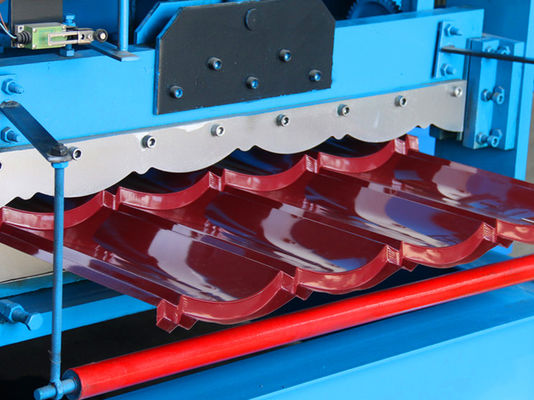

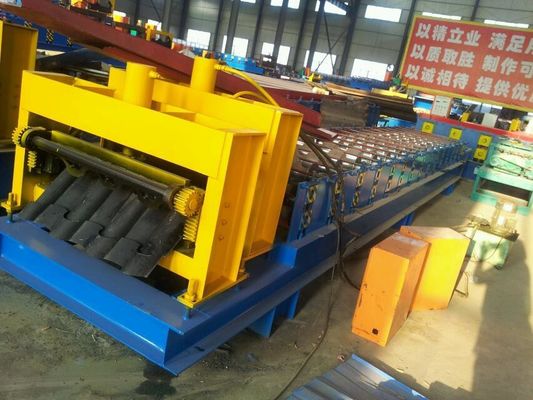

4. Details of step tile roll forming machine
FAQ:
1.How to get a quotation?
Give me the profile drawing and thickness,this is the important.
Other spicific requirements is welcome,such as the speed,power and voltage you want.
2. Terms of payment:
30% T/T, Balance to be paid before shipping after inspection.Also we accept the payment L/C, O/A , D/P.
3. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
4. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
5. What is your after-sale service?
Roll forming machine's warranty period is 12months,if the broken parts can't be repaired,we can send new to replace for free,but you need to pay the express cost yourself.we supply the technical support for the whole life of the equipment.
6. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machine chinas.
