Trapezoidal Roof Panel Roll Forming Machine 33ksi - 50ksi Yield Stress
Product Description
Main parameters:
| No. | main parameter of CORRUGATED roll forming machine | |
| 1 | Suitable to process | Color steel plate, galvanized sheet, aluminum coils and etc. |
| 2 | Width of the feeding material | 914mm |
| 3 | Roller station | 18 rows |
| 4 | Thickness of feeding material | 0.16-0.3mm |
| 5 | Power | 4+3kw |
| 7 | Productivity | 8-12m/min |
| 8 | Diameter of the roller | Φ70mm |
| 9 | Weight | About 4.5 T |
| 10 | Size | 8500*1300*1400mm |
| 11 | Voltage | 380V 50Hz 3phases |
| 12 | Rolling material | Carbon Steel 45# |
| 13 | Material of the cutting plate | Cr12 |
| 14 | Wall thickness of main forming machine | 14mm steel plate |
| 15 | Main forming machine body | 300 mm H steel |
| 16 | Control system | PLC control |
| Can be customized according to customer requirements or drawings | ||
Equipment components:
Man-made uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting,output table.
Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.

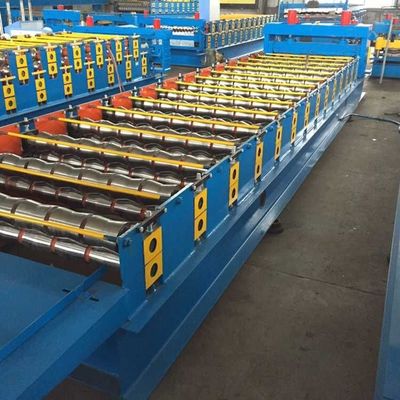

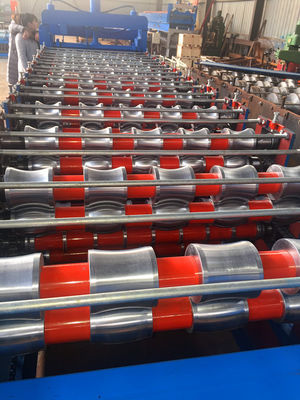

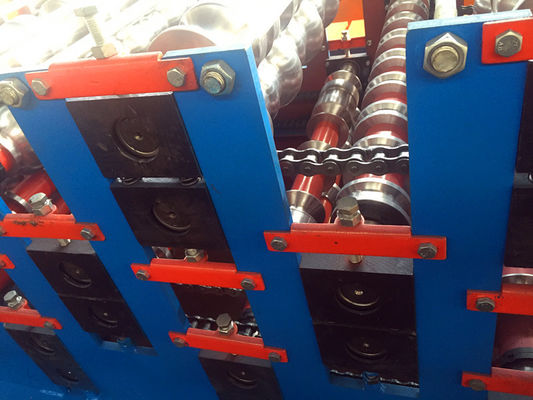

Picture Show

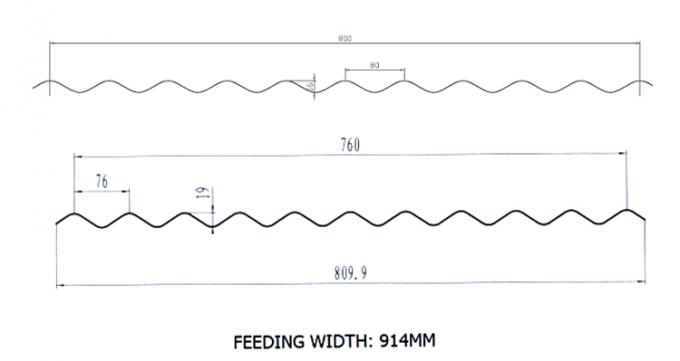

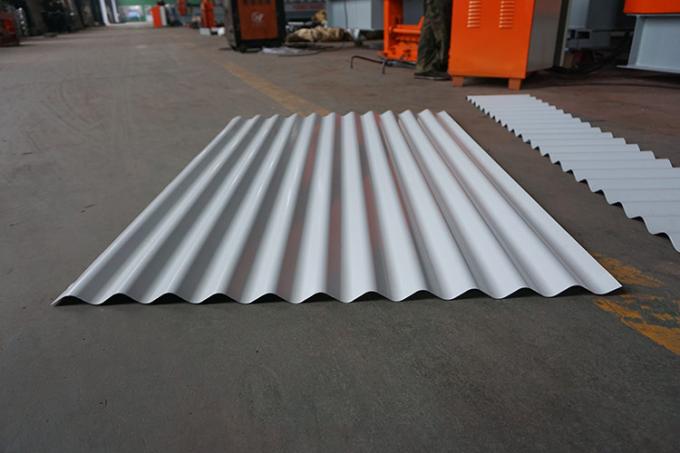

Profile
