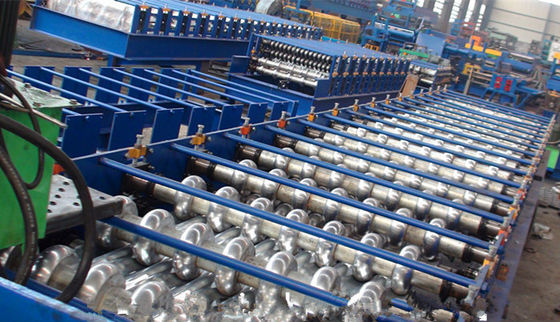

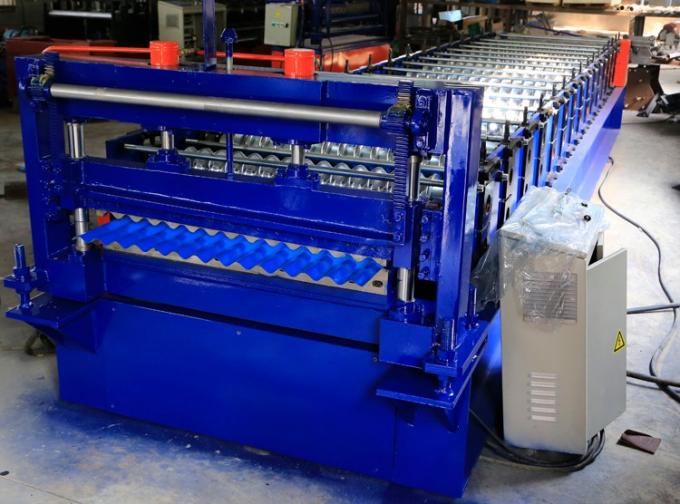

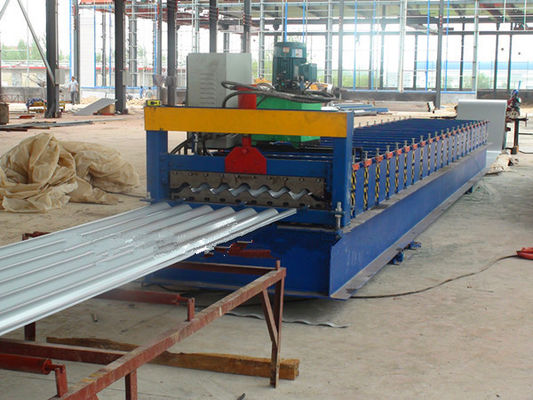

Building Material Corrugated Sheet Roll Forming Machine 13-16 Stations Roller
Product Application
This machine takes GI/PPGI as raw material, through a series steps and can produce the barrel type
roofing sheets.
The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.
|
TECHNICAL PARAMETERS FOR CORRUGATED PANEL ROLL FORMING MACHINE |
|||
| Serial Number | Item | Parameters | Remark |
|
Applicable material |
Type | GI/PPGI | |
| Thickness | 0.25-0.6MM | ||
| Yield strength(Mpa) | G245-G550 | ||
|
Main performance parameters |
Forming speed(M/MIN) | 12-20M/MIN | |
| Machine size(L×W×H) | 9*1.5*2 | Refer to the machine | |
| Power supply(KW) | 7.5+3.0 | Motor and Hydraulic Motor | |
|
MACHINE COMPONENTS FOR CORRUGATED PANEL ROLL FORMING MACHINE |
|||
| Name | Model/name | Quantity | Technical description |
|
|
|
|
Capacity: Max. 5Ton,hydraulic control steel coil inner bore expanding, shrinkage and stop. |
|
|
Material Guiding System | 1 set | For feeding in a right position no Deviation. |
| Precutting Device | 1 set | Prevent the profile being unbeautiful because of the rough material. | |
| Main Roll Forming Machine | 1 set | About 22 steps, motor driving and chain transmission. Wall plate structure. | |
| 3.Cutting system | Hydraulic Cutting Device | Precutting and postcutting both. | |
| 4.Hydraulic system | Hydraulic Station | 1 set | Providing the power of cutting. |
|
|
PLC Control System |
|
PLC control system, encoder positioning and cut-to-length automatically, touch screen operating. |
| 6.Racking system | Exit rack | 3 PC | no power. |
