Fully Automatic Metal Roll Forming Machines /Floor Decking Making Machine
Product Description
Technical description:
A Decoiler
| 1 | Load Capacity | 5T |
| 2 | Coil Inner-Diameter | ≤508mm |
| 3 | Coil Outer-Diameter | ≤3000mm |
B Roll forming device
| 1 | Material thickness | 0.8mm-1.5mm |
| 2 | Feeding width | 1000mm(acccodring profile drawing ) |
| 3 | Effective width | 688mm(acccodring profile drawing) |
| 4 | Forming Steps | 30steps |
| 5 | Line Speed | 8 to 15m/min(adjustable) |
| 6 | Stand | Independent stand structure (raft structure) |
| 7 | Drive | Independent motor and moved by chain |
| 8 | Material of Roller | 40Cr, HRC45-55 |
| 9 | Shaft Diameter | 100 to110mm |
| 10 | Main Motor Power | About 30KW |
| 11 | Voltage | 380V/50HZ/Three Phase |
C Hydraulic Cutting Device
| 1 | Cutting Die | Cr12, HRC58-62 |
| 2 | Tolerance | ±2mm |
| 3 | Valve | Adopts Italy Atos |
| 4 | Hydraulic power | 7.5kw |
D Output table
| 1 | Function | It is used to collect the profiles after roll forming. |
| 2 | Structure | The roller is coated with Cr (Zn) |
| 3 | Length | 6000mm |
F PLC Control System
| 1 | Function | Control the whole line manually and automatically |
| 2 | Structure | MITSUBISHI PLC control, human and machine screen. |
| 3 | Marks | Main Application: Floor decking |
Our Services
Iterms
| Payment type | 30% T/T prepaid and balance should be paid before loading |
| Delivery time | 30 working days after receiving prepaid |
| Guarantee period | 18 months free service/ pay service all the machine life |
| Installation and training |
If buyers visit our factory and check the machine, |

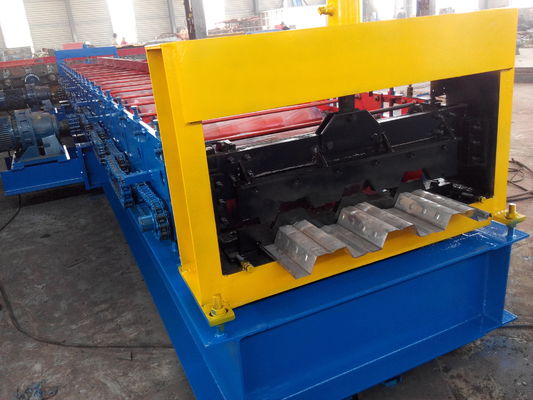

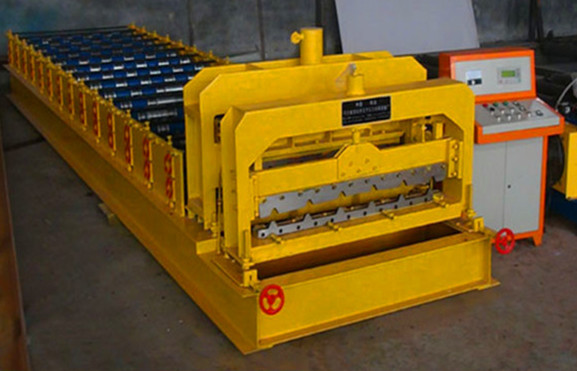

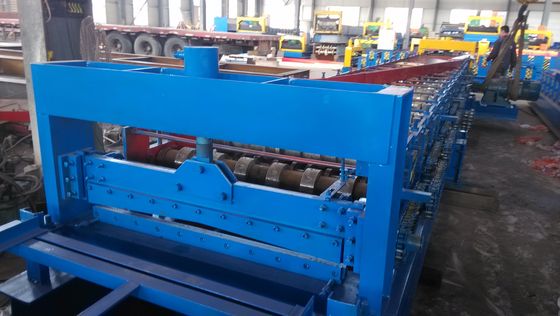

Machine pictures:
