Hydralic Floor Deck Roll Forming Line 8--15M/Min Speed 5.5Kw --15KW
Product Description

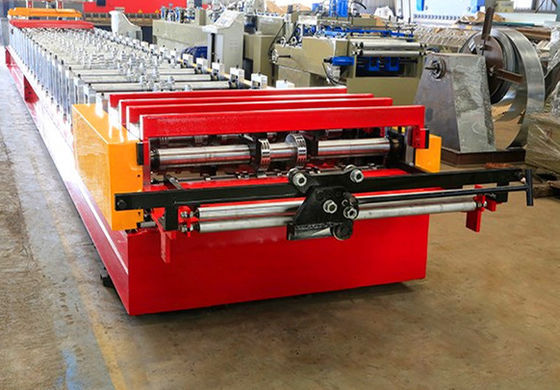

Floor deck forming machine is galvanized steel as a raw material, after rolling cold-formed technology, die forming, mainly used for the production of steel works with floor boards, rolled into the floor boards after its V-shaped cross-section into categories, U-type, a ladder or a combination of several shapes, mainly used to make permanent formwork composite slab or concrete slab.
| Manual Un-coiler |
◊ Max Capacity: 5000kgs ◊ Inner diameter of coil: 400-600mm ◊ Manual with brake |
| Leveling Device |
◊ Ensure the material level and straight ◊ The width can be adjusted |
| Auto Main Forming System |
◊ Width: According to Drawings ◊ Height: According to Drawings ◊ Thickness of sheet: According to Drawings ◊ Material: GI sheet coil or Colored sheet coil ◊ Motor Power: 18.5 kw forming system ◊ Roller material: C45 steel, chrome coated ◊ Diameter of shaft: 110 mm ◊ Transmission: by chain and gear ◊ Measuring accuracy: +/- 0.5 mm/M ◊ Base Frame: 400 H steel welded ◊ The machine base is assembled and welded by high quality steel ◊ Total Length of Machine: 11.8 m |

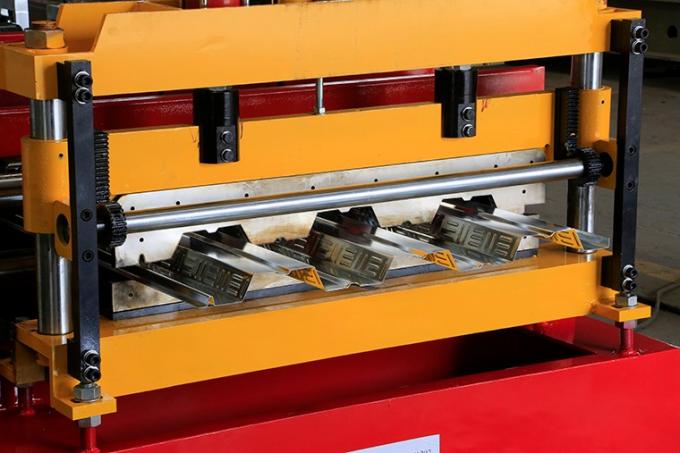

| Hydraulic Cutting Device |

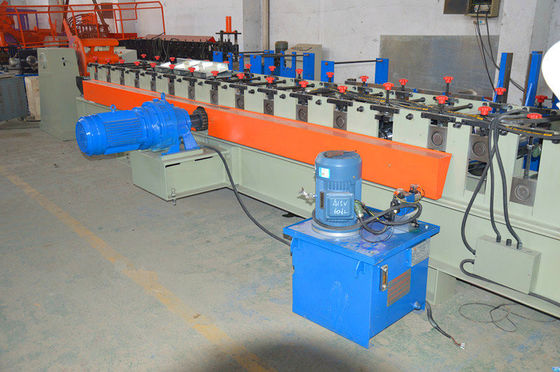

◊ Cutting way: pause to cut. ◊ Blade Material: Cr12 ◊ Hydraulic power: 4 kw hydraulic system. ◊ Hydraulic Station Structure: 300mm steel welded. Four guide columns. |
| Electrical System |
◊ Control system: HMI & PLC control panel. ◊ Power: 440V 50Hz (as per local requirement) |
| Run-out Table |
◊ Frame: 8# steel groove welded ◊ Roller type. ◊ Quantity: 1 pc |
FAQ
Q: Are you manufacturer?
A: Yes, we are manufacturer and trading company. We have our own technical team, and about 86,000 sq.m workshop. Welcome to visit us.
Q: What kind of payment term you can do?
A: We are flexible about payment terms, we can help you on financing also, please contact us for details.
Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings, material information, you special requirements.
Q: What I should do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service.
