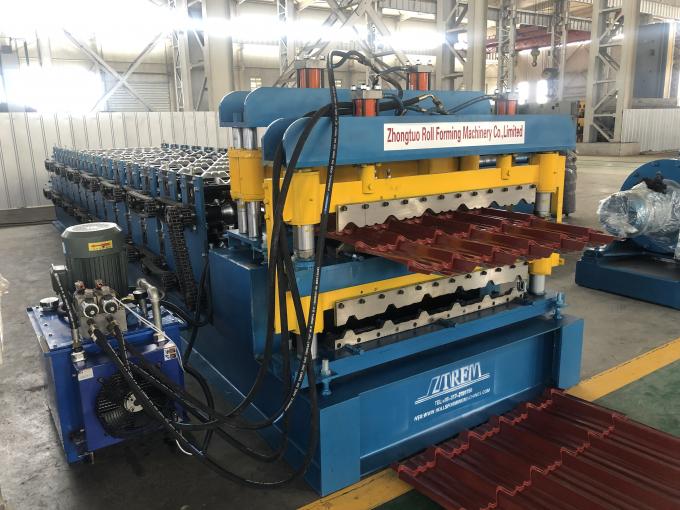

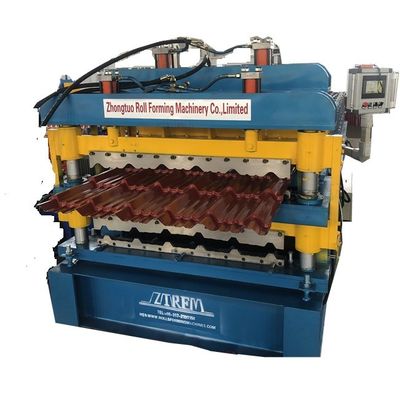

Double Layer Steel Roofing Sheet Corrugation Roll Forming Machine
| Machine Description | Quantity | Delivery time | Container Type | Price(FOB TIANJIN) |
| rolling machine for double layer production line |
1 SET |
30 working days after receiving deposit |
One 40GP |
USD6900--24900 |
Colored steel are widely used in building: the steel-structured large-scale warehouses, plants, super-
markets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, resi-
dences, and different kinds of greenhouses. What's more, equipment can be designed and manufac-
tured as customers' requests.
Components of steel sheet roll forming machine
| No. | Name | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | Main forming machine | set | 1 |
| 3 | PLC control system | set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 5 | Post cut | set | 1 |
| 6 | Electric motor | set | 1 |
| 7 | Output table | set | 1 |
steel sheet roll forming machine Production Process:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→
Products receiving
Parameters:
| No. | Main Parameters of Double Layer Roll Forming machine | |
| 1 | Suitable to process | Colored Steel plate, galvanized board, aluminum plate |
| 2 | Control system | PLC control |
| 3 | Productivity | 15-20m/min |
| 4 | Width of the raw material | 1250mm |
| 5 | Thickness of the plate | 0.3-0.6mm |
| 6 | Rollers |
Up layer:13 rows Down layer:18 rows |
| 7 | Diameter of the rollers | 70mm |
| 8 | Rolling galvanization thickness | 0.05mm |
| 9 | Material of the cutting blade | Cr12 |
| 10 | Dimension | 9.2m*1.6m*1.4m |
| 11 | Weight | About 13.2T |
| 12 | Voltage | 380V 50Hz 3phases |
| 13 | Power | 5+4kw |
Packaging Detail of steel sheet roll forming machine :
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
