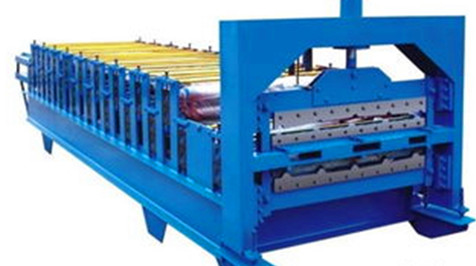

Durable Double Layer Roll Forming Machine Sheet Metal Forming Equipment

4 Tons Double Layer Roll Forming Machine 5.5 Kw Hard Forged Shaft



Product Description



     This production line can automatic continuous rolling forming ,track scale cut off and etc for the plate, ensure the continuity of production and often can up to max. Steel strip coil are on manual feeding shelf, enter into roll forming machine for forming, and then cut the knife moulds to cut the product for length.



Manual feeding→Feeding guide→roll forming →straightening→Track to cut off→Automatic material pallet

No.	Name	Specification	Quantity
1	One ton of manual decoiler	1. Material thickness:0.27-0.8mm	1set
		2. Material width:20~350mm
		3. Feed speed: follow-up
		4. Rated load:1T;limit load:1.5T;
		5. Steel volumes of hole:508mm;OD:1350mm;
		6. Tensioning type:Manual screw tensioning
2	Rolling forming parts	1. spindle:dia50mm, 40Cr,The drive shaft	1set
		2. forming passes:14;fame:Guide pillar arch structure
		3. roll speed:0~15m/min
		4. Siemens three-phase motor,11KW four level one set
		5. drive:Turbine worm reducer
		6. protection mesh enclosure
3	Tracking cutting machine	1. Cutting type:Hydraulic cutting	1set
		2. control type:Servo trace ,Digital fixed-length
4	Computer control system	1. transducer:Siemens or mitsubishi	1set
		2. PLC: Mitsubishi and Siemens
		3. encoder:Omron(2000P)
		4. touch screen:Mitsubishi or Siemens
		5. A key remote control, automatic stop



Detailed Images

Automatic pallet loading

1. Photoelectric sensor;
2. Cylinder control,Cantilever material;
3. Automatic pallet;

Cutting:

(1) Cutting motion: The main machine automatically stops and then cutting. After the cutting, the main machine will automatically start.
(2) Material of blade: GCR12 with heat treatment
(3) Length measuring: Automatic length measuring
(4) Tolerance of length: +/- 1.5mm

Control Box: Panasonic Brand

(1) Voltage: 380 V, 50 Hz, 3Phase (It can depend on customer request)
(2) Automatic length measurement:
(3) Automatic quantity measurement
(4) Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved



After-Sales Service



1.One year warranty is provided.
2. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by misoperation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the warranty, we only charge for the basic costs of parts.
3. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.
