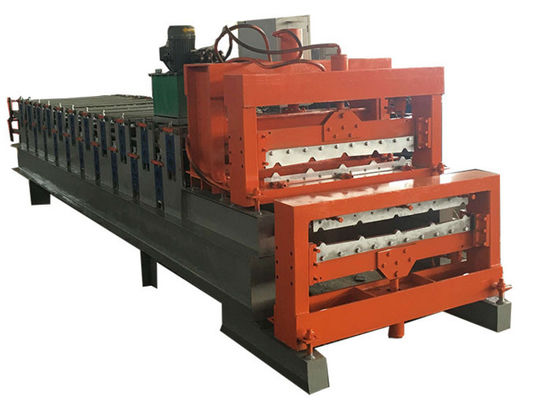

Double Layer Roofing Sheet Roll Forming Machine Galvanized Trapezoidal Shape Work Flow

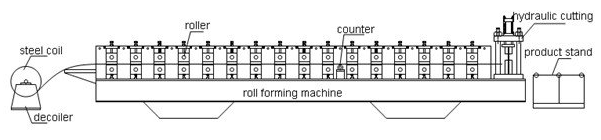

Manual feeding→Feeding guide→roll forming →straightening→Track to cut off→Automatic material pallet
|
Machine Components
Decoiler-----------------------1set
Roll Forming Machine------1set
Cutting Device---------------1set
Hydraulic Pump--------------1set
Control System--------------1set
Output Table-----------------1set
Working Flow
Decoiler--Feeding--Roll Forming--Cutting--Output Table
Main Parameter
| Shaft Material |
No.45 steel with treatment |
| Roller Station |
up 16 steps
down 18 steps
|
| Main Shaft Dimension |
70mm |
| Material Thickness |
0.3-0.8mm |
| Roller Material |
No.45 steel with treatment |
| Working Speed |
8-12m/min |
| Material |
PPGI/GI |
Decoiler
Capacity: 5000kg
Width: 1250mm
Type: Hydraulic Or Manual (Optional)
Inner Diameter: 450-550mm
Outter Diameter: 1500mm

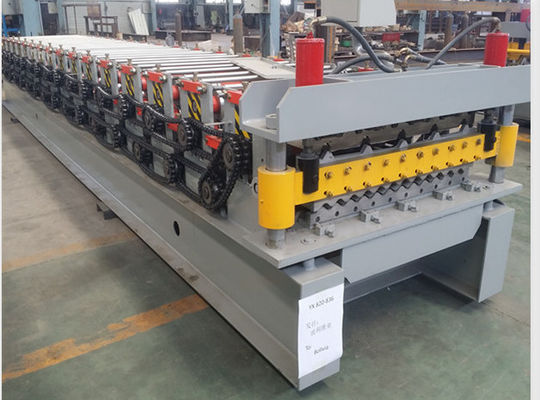

Roll Forming Machine
Power: 3kw
Frame panel thickness: 14mm
Bottom Frame: 360H steel
Weight: 5t
Cutting Device
Type: Hydraulic
Driven; 1 inch chain
Power; 3kw
Cutting Blade: Cr12 steel
Hardness for Heat Treatment:HRC55 – 60°

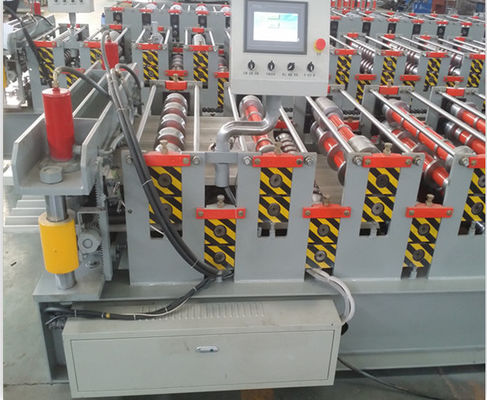

Control System
Type: PLC Frequency Control System with touch screen
PLC Brand:Delta
Encoder Brand: Omron
Length Error: ±2mm
Language: English and Chinese
Hydraulic Pump
Power: 3kw
Oil Type: 46# hydraulic oil
Pump Brand: China Brand
Output Table
Length: 6m
It is simple and used to load finished product.
Packing Detall
1. one 40ft container for loading one set machine with manual decoiler;
2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
Our Service
Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 30days after receving advance payment.
Guarantee period: 18months free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
|
