Building Materials Roll Forming Machine 6.5T Gas And Electrical Centralized Control
Components & Details

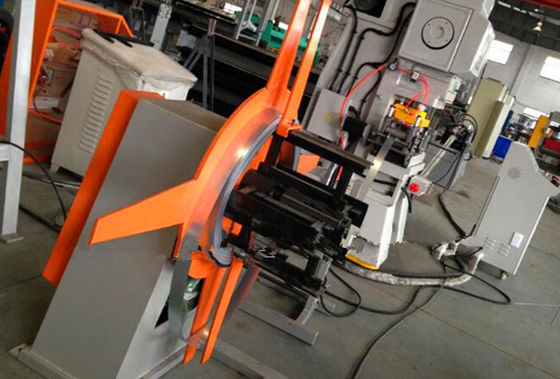

| 1. Decoiler |
| Manual expansion to tighten the materail |
| 2 sets of non power decoielrs |
| Material OD: 1600mm |
| Mateiral ID: 450mm-510mm |
| Material width: 200mm |
| Material weight: 600kg |
| Equipped with manual brake |

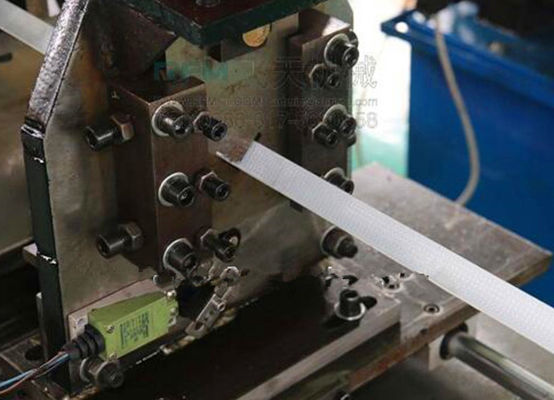

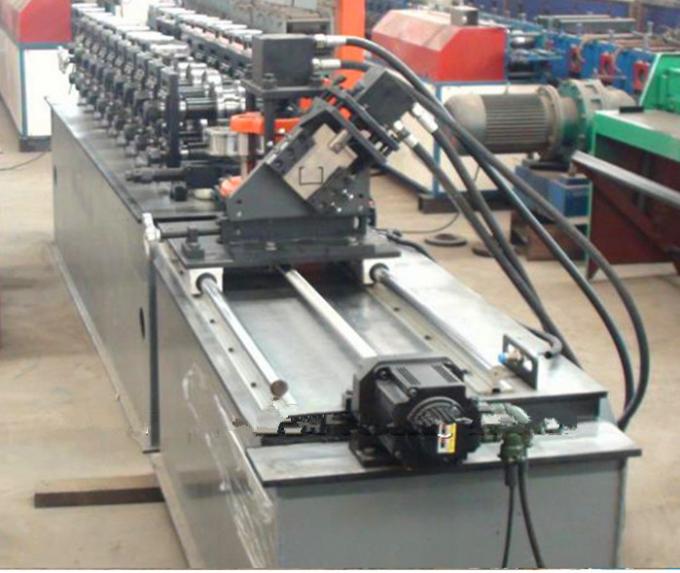

| 2. Roll forming machine |
| Made by welded steel plate |
| Side guider |
| 15 steps of roller |
| Material of roller: Cr12 steel,quenched treatment,hardness:HRC58-60℃ |
| Dimater of main shaft:38mm,material: 45#steel |
| Main motor power: 3kw |
| 3. Cutting machine |
| Pneumatic cutting system |
| Diameter of cylinder: 125mm |
| Cutting mold: blade cutting type |
| Equipped with one set of cutting mold |
| Material of cutting mold: Cr12Mov |
| 4. Run-out table |
| Length: 6m |
| Made by angle iron |
| 5. Electrical part |
| Length fixed by coder |
| Length tolerance: ±0.5mm |
| 6. Electric control system |
| PLC control system, speed controlled by inverter, 7 inch color touch screen |
| Delixi brand components and Schneider button |
| Equipped with inverter and switching power supply |
| Working voltage: 380V/50Hz |
| Control power:220V/50Hz and DC 24V |
Working Flow:
Decoiler--Decoiler--Roll forming --Straightening -- Sizing & cutting --Unloading
Machine components
| No. | Name | Qty |
| 1 | Manual decoiler | 1 |
| 2 | Hydraulic punching machine | 1 |
| 3 | Main roll forming machine | 1 |
| 4 | PLC Control box | 1 |
| 5 | Hydraulic Pump Station | 1 |
| 6 | Output table | 1 |
