Automatic roller shutter door roll forming machine 5.5Kw--12Kw Power Controled
Product Description
Automatic galvanized steel plate roller shutter door frame cold roll forming machine Characteristic
1. This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2. Rollforming process:uncoiler, rollforming, forming step effect, cut to length.
3. Fully Automatic Control System with PLC.
4. Easy operation: Key in the length and quantity on the control panel.
5. One year warranty.
6. we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
One roll forming machine only can produce one profile.
omposition of Machine Line
Manual Decoiler for free (used to support the steel coil and uncoil it in a turnable way ,passive uncoil pulled by a rollforming system)
coil inner diameter ................450-550mm
max coil width........................1250mm
max load capacity..................5T
Main Machine

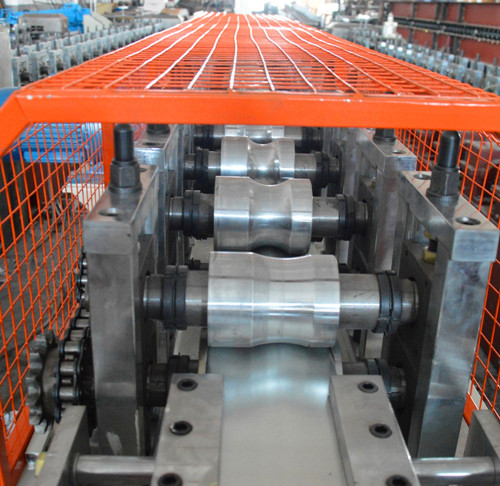

1 roller material: 45# steel with hot treatment at 52-68 degrees, hot chormed on the surface to make sure its hardness.
shaft material: solid shaft(not hollow style), around 70kg/pc, to make sure the strength of it.and final profile shape are perfect in this way.
shaft diameter: normally is 70mm.
2power: main motor power 3kw, hydraulic pump station 3kw
3transmission model: gear and chain
4controlling model: PLC controlling system, fully automatic.
5Forming speed: 8-12m/min

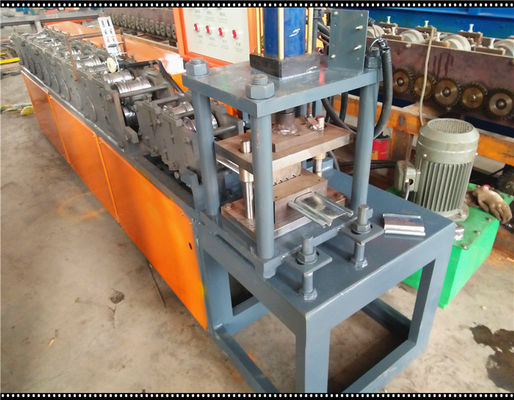

Hydraulic cutting system with automatic Cut-To-Length
1. Cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or
wasting, high level safety factor.
It adopts the hydraulic drive and automatic encoder to cut the accurate length you set on the computer.
2. Material of blades: Cr12 quenched
3. Power supply : hydraulic power
4. Components: It contains one set of blade, one hydraulic tank and one cutter machine.
Packaging & Shipping
1. We have professional technicians for loading
Guaranteed the goods load into container without any damage.
2. Transportation : Machines need one 40 feet container to hold
