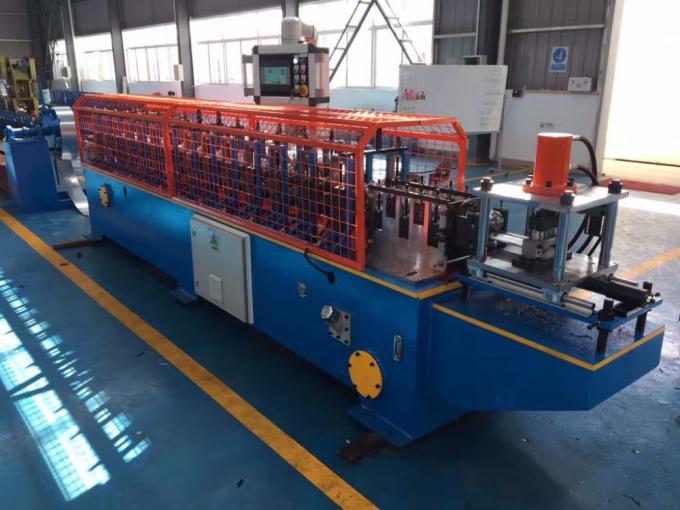

hydraulic door frame steel sheet making machine 8.-12M/Min High Speed
1. specification of the roll forming machine
|
1Main motor power: 5.5KW 2Hydraulic station power: 4KW 3Hydraulic oil pump:E310 4Sprocket: P-25.4 5Roller station: 13 6Yield strength: 32MPa 7Diameter of principal axis: 90MM 8Material of roller: 45#steel hard chrome plating 9Processing speed: 8m/min 10Thickness: 0.3-1.2mm 11Installation dimension about(L*W*H): 7.2M*1.3M*1.5M 16Total weight: 4.2T 17Equipment parts: roll forming system, hydraulic system, PLC frequency conversion control system, counter, cutting system,decoiler . |
Processing technique and deployment:
Uncoiler
Feeding platform
Molding core

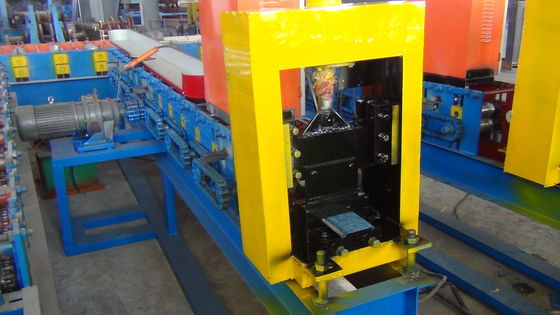

Molding shearing mechanism
Hydraulic station
Computer control cabinet
Counter
Optional equipment:
·Manual uncoiler frame in different tons
·Hydraulic automatic uncoiler
2. process of the roll forming machine
3. Payment terms
T/T( 30% by T/T in advance, the rest 70% to be payed by T/T after you inspect the machine in seller's factory before delivery )
FAQ
1) Q:Can you make machine according to my design?
A:Yes, we have experienced technical team to work out the suitable design for you and confirm with you until you agree.
2) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit.
3) Q:What payment terms you accept?
A:Commonly is TT, 30% deposit and 70% before shipment, and sometimes we can consider more for you as per your request.
4) Q:What is the warranty for our machine?
A:We have one year guarantee, and provide whole life's technical support
