3.5kW --12.5Kw Cold Roller Shutter Door Roll Forming Making Machine
1.
Metal Shutter Door Roll Forming Machine,Roofing Sheet Roll Forming Machine
The color steel sheet is widely used in villa , holiday village , gardening industrial building , storage , scenic tourist area , pavilions , hotel , exhibition hall and so on . And we are emphasis on the detail and the technical update constantly.
2.
Metal Shutter Door Roll Forming Machine,Roofing Sheet Roll Forming MachineComponents:

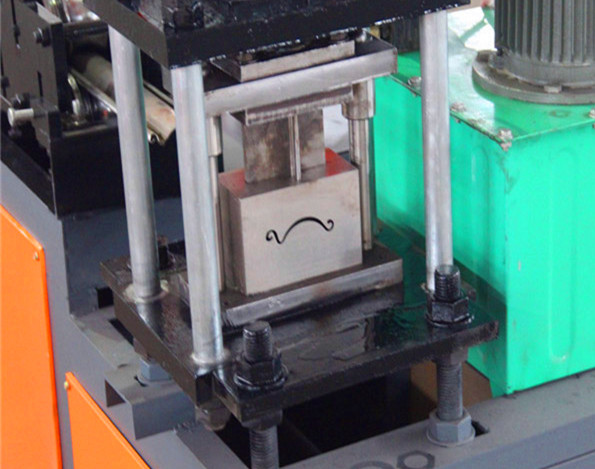

Uncoiler, Coil sheet guiding device, Main roll forming system,Post cutting device,Hydraulic station, PLC control system and Support table.

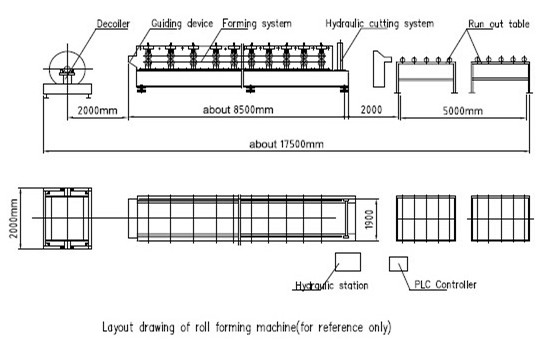

3. Shutter Door Roll Forming Machine Working Flow:
manual uncoiler—Roll forming machine—computer control system—hydraulic control system—form cutter
4. Technical Parameter
| No. |
main parameter of Shutter Door Roll Forming Machine
|
|
| 1 | Suitable to process | Galvanized Steel |
| 2 | Width of the plate | 100mm |
| 3 | Rollers | 12stations |
| 4 | Dimensions | 3.5M*0.8M*1.2M |
| 5 | Power | 3KW |
| 6 | Thickness of the plate | 0.8-1.2mm |
| 7 | Productivity | 8-10m/min |
| 8 | Diameter of the roller | Φ50mm |
| 9 | Weight | About 2T |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Material of the cutting plate | Cr12 |
| 12 | Hydraulic | 40# |
| 13 | Processing precision | Within 1.00mm |
| 14 | Control system | PLC control |
