|Type::||Cold Rolling Mill||Dimension(L*W*H)::||6500*1300*1100|
|Weight::||3-10tons, According To Customer||Oltage::||220v-380v-440v|
|Final Product::||Steel Plate||Shaft Material::||45# Steel Outer Diameter: 40mm Roll Material:|
|Roll Material::||.Forged 45# Steel0mm||Warranty::||12 MONTHS|
roofing sheet roll forming machine,
iron sheet making machine

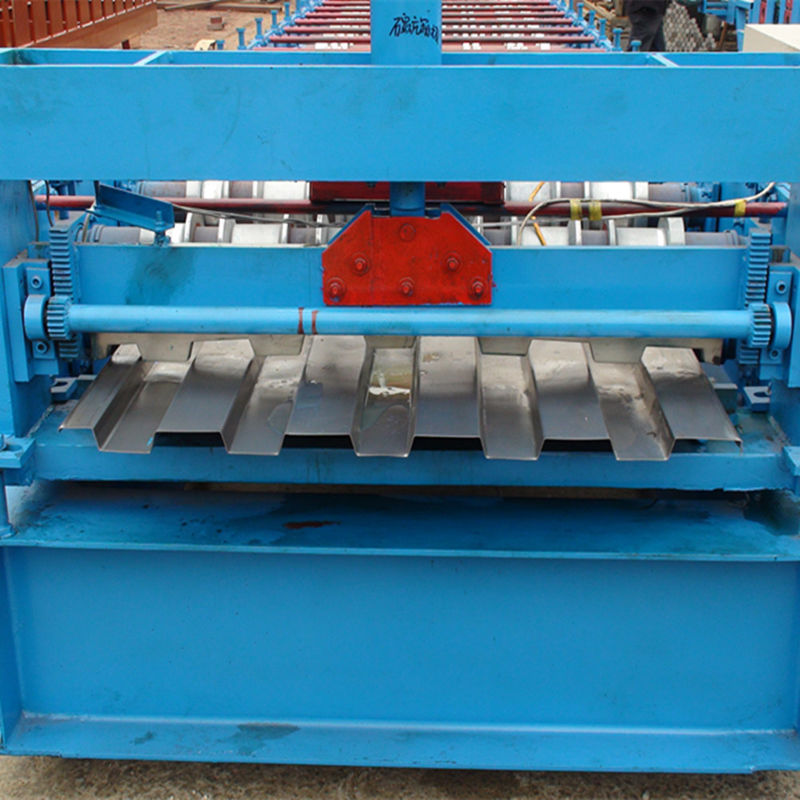

Container Board Car Panel Roll Forming Machine With Hydralic System Controled
Working Process Flow
Uncoiling→Feeding material into machine→Punching → Roll forming→Measuring length→ Auto cutting→
|Uncoil||manual uncoil or hydraulic uncoiler|
|Raw material thickness||0.2mm-1.5mm|
|Material||as customers demand|
|Feeding width||according to your profile|
|Forming station||15 -18 steps or more|
|Shaft diameter||90 mm|
|Shaft material||high grade 45# steel, heated and quenched|
|Roller material||high grade 45# steel,coated with 0.05mm chrome|
|Forming speed||18-28m/ min(adjustable)|
|Transmission type||chain transmission|
|Machine frame stand||welded structural steel,thickness is 20mm|
|Motor||Detal brand / Siemens brand or as your need|
|Main motor power||3-11 kw|
|Cutting type||stop hydraulic cutting|
|Cutting power||7.5 kw|
|Cutter material||Cr12 with quenched treatment HRC 58-62|
|Cutting length error||±1mm|
|Voltage||380V & 50HZ & 3 or according to your requirement|
|Control system||PLC control system|
|Size of PLC||2700mm*1000mm*300mm|
|PLC||Siemens or Detal as customers demand|
1. Cangzhou Kingter Roll Forming Machine Co.,ltd is located in " The Town of Casting Molds", enjoys convenient transportations, Di Kou Zhang Village, Nancang Road, Botou City, Hebei Province, China.
2. We are a manufacture of roll forming machine, all of the parts we made ourselves, so, we can insure the quality of our products.
3. Cangzhou Kingter Roll Forming Machine is a company integrating production, processing, sale, trade, so we will give our customers the best price.
1 How can we install the spiral welded pipe roll forming machine?
a When finished the spiral welded pipe roll forming machine, you can with your techinian or one of your worker to our factory inspect the machine. While we run the spiral welded pipe bending machine , we can teach your techinian how install the machine and run the machine.
b If you do not plan to come the inspect the machine running, we can send you the machine running vedios and machine manual which telling how to install the machines.
c We also have a strong machine installing team which ever go to custoer's country install many machines.
If you demand our technian to work with you, our techinian can go to your place teach our worker's .
But, our techinian's accomodations should be arranged by your sides and pay 50 USD/day .
