Building Material Double Layer Roof Sheet Making Machine , Guardrail Roll Forming Machine

China Building Material Double Layer Roof Sheet Making Machine , Guardrail Roll Forming Machine supplier
Building Material Double Layer Roof Sheet Making Machine , Guardrail Roll Forming Machine supplier Building Material Double Layer Roof Sheet Making Machine , Guardrail Roll Forming Machine supplier

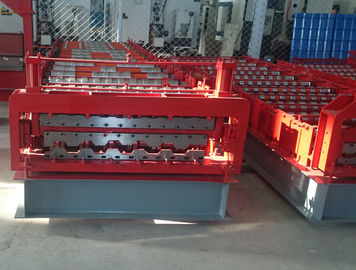

Large Image :  Building Material Double Layer Roof Sheet Making Machine , Guardrail Roll Forming Machine

Product Details:

Place of Origin: Hebei
Brand Name: JK
Certification: CE
Model Number: 840 and 850

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: on discuss
Packaging Details: 1. one 40ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3. Spare parts and some small parts packed in plastic tooling box; 4. All Components Fixed by steel wire with
Delivery Time: 20 days after receipt of buyer's deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Model NO.:: 840+850 Tile Type:: Colored Steel
Application:: For Roof Sheet Production Roller Material:: 45# With Chromeplating
Shaft Material:: 45# Steel Tempering Kind Of Drive:: Chain Drive
Transport Package:: Nude In 40FT Container HS Code:: 8462219000

Doubles Layer Roof Sheet Making Machine For Building Material



steel sheet roll forming machine Production Process:



Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→

Products receiving



Components of steel sheet roll forming machine



No. Name Unit Qty
1 Manual decoiler set 1
2 Main forming machine set 1
3 PLC control system set 1
4 Hydraulic pump station set 1
5 Post cut set 1
6 Electric motor set 1
7 Output table set 1




Parameters:

1.Weight capacity of decoiler 4T
2.Appearance Size(L*W*H) 6500*1500*1500
3.Raw material /feeding sheet material colored steel & galvanized steel
4.Roller material 45# high grade steel
5.Shaft material 45# high grade steel
6.Kind of drive chain drive
7.Cutting system automatic hydyaulic cutting
8.Cutting blade material Cr 12 high grade steel
9.Frame material 300 H-high grade steel
10. Control system totally automatic PLC control system
11.Main power 3 kw
12.Roller stations 13 rows
13.Speed of production 8-12m/min
14.Thickness of colored steel 0.2-0.8mm
15.Feeding width 1000mm
16.Effectiv width 840/900mm
15.Frame material 300 H-steel




ABOUT US :



Cangzhou Kingter Roll Forming Machine Co.,ltd



We are the manufacturers all kinds of roll forming machine, which can provide overseas after-sales service .

Our factory is one of the earliest Roll Forming Machine Manufacturers in China Botou City (found in 1996 with more than 18years experience and covers an area of over 20000 square meters,has two seperated factory.),

We are not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines,

C&Z shape purline machines,

highway guardrail roll forming machine lines,

sandwich panel production lines,

decking forming machines,

light keel machines,

container board roll forming machine

bending machine,

shutter slat door forming machines,

cutting machine and automatic un-coiler

downpipe machines,

gutter machines, etc.

Trapezoidal steel roof panel roll forming machine for sale

All the parameters are only for reference, we can manufaturing Joint-Hidden Roofing Sheet Roll Forming Machine as per your profile drawings.
