Electric Pipe Roll Forming Machine / Low Carbon Steel Pipe Making Machine

Electric Pipe Roll Forming Machine / Low Carbon Steel Pipe Making Machine
Electric Pipe Roll Forming Machine / Low Carbon Steel Pipe Making Machine Electric Pipe Roll Forming Machine / Low Carbon Steel Pipe Making Machine

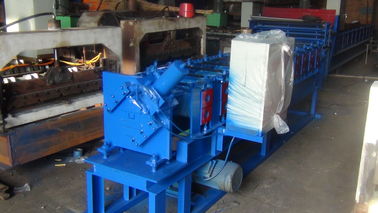

Large Image :  Electric Pipe Roll Forming Machine / Low Carbon Steel Pipe Making Machine

Product Details:
Certification: CE
Model Number: bending
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: 1.Tighten to container with steel wire rope and welded angel iron. 2.Main forming machine and unciler is naked (if you need we can also packed with water-proof plastic) 3.Roll forming machine PLC control system and moter pump are packed with water-proof
Delivery Time: 30 days after received your advanced payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20 sets per month

Electric Pipe Roll Forming Machine / Low Carbon Steel Pipe Making Machine

Description
Tile Type:: Colored Steel And Galvanized Steel Weight:: About 0.8 T
Shaft Material:: High Grade No.45 Forged Steel,with 5 Nm Chrome Coated Thickness Of Plate:: 0.2-1.0mm
Cutting Blade Material:: Cr12 Mould Steel With Quenched Treatment Frame Material:: 300 H-high Grade Steel
Cutting System:: Automatic Hydyaulic Cutting Warranty:: 1 Year
High Light:

pipe roll forming machine

,

gutter rolling machine

Electric Pipe Roll Forming Machine / Low Carbon Steel Pipe Making Machine



The model and basic parameters

Diameter(mm) 8-16 10-26 14-38 20-63.5 32-70 40-80 50-90 60-120 60-130 80-165
Thickness(mm) 0.3-1.0 0.5-1.5 0.6-1.8 0.8-3.0 1.0-3.0 1.0-3.5 1.5-4.0 2.0-5.0 1.5-5.5 2.0-6.0
Speed(m/min) 80-100 80-100 80-100 70-80 70-80 60-70 50-60 40-60 20-60 20-50
Host motor power(Kw) 22 37 75 132 55*2 132*2 90*2 110*2 220*2 220*2
High-frequency equipment(Kw) 60 60 100 200 250 250 250 300 300 400
Equipment composition Uncoiler, flattener, shearer welder, storing device, forming sizing unit, flying saw,
discharging table,packer, high-frequency device
Remark If you have any question, please contact us freely!



Summary
This equipment is specially used for producingΦ20-Φ80mm, δ1-4.0mm high-frequency straight seam welded pipe and corresponding square pipe (17*17-62*62mm,1.2-3.0mm). The composition of equipment is from uncoiler to fixed length cutting saw. Rolling speed can be according to suitable range of pipe diameter and wall thickness.
A. Applicable material
1 Raw material: Low-carbon steel,

2 Thickness of steel strip: 1.0-3.5mm
3 The width of steel strip: 60-240mm
4 I.D. of steel coil: Φ450-Φ550mm
5 O.D. of steel coil: Φ800-Φ1200mm
6 Maximum weight coil: 2500kgs
B .Dimension range of processing steel pipe
1 O.D of pipe: Φ20-Φ80mm
2 Wall thickness: 1.0-3.5mm (square pipe :1.2-3.0mm)
3 Length: 4-8m
4 Milling speed: 60-70m/min
5 High-frequency equipment power: 250 KW (Solid state)
6 Voltage:380V/440V,50HZ
C.Main components
1 Uncoiler: 1 set
2 Shearing and butt-welder: 1 set
3 Accumulator: 1 set
4 Forming. Welding &sizing unit: 1 set
5 Computer-controlled tracking cutting saw: 1 set
6 Run-out table: 1 set
7 Solid-state high-frequency welder: 1 set


Our Services:

1.) we can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket,visa,accormadation,food and transpotaion in your country

2.) You can send your men to our factory. we will teach them how to operate the machine without training charges

3. ) Actually theres another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manaul first ,and get familiar with the machine. Then we can get a video call,and teach you on-line how to operate the machine.

4.) Apart from above training course,we also provide 1 year warranty for all the easily broken part of the machine for free and whole-life technical service support !
