Adjustable Width Linear Ppgi 0.2mm Shelf Panel Roll Forming Machine

Adjustable Width Linear Ppgi 0.2mm Shelf Panel Roll Forming Machine
Adjustable Width Linear Ppgi 0.2mm Shelf Panel Roll Forming Machine Adjustable Width Linear Ppgi 0.2mm Shelf Panel Roll Forming Machine Adjustable Width Linear Ppgi 0.2mm Shelf Panel Roll Forming Machine Adjustable Width Linear Ppgi 0.2mm Shelf Panel Roll Forming Machine

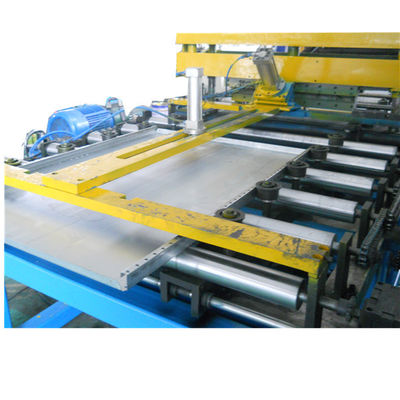

Large Image :  Adjustable Width Linear Ppgi 0.2mm Shelf Panel Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: ZTRFM
Certification: CE. SGS
Model Number: 002
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: Nude package with anti oil
Delivery Time: 60 working days
Supply Ability: 30 sets per month

Adjustable Width Linear Ppgi 0.2mm Shelf Panel Roll Forming Machine

Description
Material: PPGI, GI Or Others Thickness: 0.2 To 1.2mm
Width: Adjustable Type Speed: 15 To 20 Meter Per Minute
Color: Customize Electricity: Customize
Decoiler: Manual Or Hydraulic One Type: Rolling Forming Machine
High Light:

ppgi shelf panel roll forming machine

,

ppgi cold formed steel machine

,

0.2mm shelf panel roll forming machine

                                                                Adjustable width linear shelf panel machine

Adjustable width linear shelf panel machine is designed to make the shelf panels in batch fully aromatically. And the length and width of the shelf panel both adjustable. It could produce the shelf panel width within some range by rolling forming principle. In the market, it is easy to make the shelf panel in the fixed sizes, but when make the shelf panels in adjustable width, it is not easy, the punching part and the rolling forming machine all need to be adjustable. In the following part, we take the following drawing profile for example to show you how the machine is designed:

Drawing profile of shelf panel

That means that by this machine, we can produce the profile from 285 to 685mm width. The punching part and rolling parts are all adjustable.

Adjustable width linear shelf panel machine working flow for your reference:

Shelf panel linear machine

Decoiler-----Leveling----- Servo Feeding---Punch Punching—Direction---2 Channel Clipping (Optional for Covering)---Crossing Both Sides-- --Roll forming (through the 28-roller roll forming of the main machine)----cutting after forming + turning two straight sides-----finished products

Working flow of the shelf panel machine

About the punching

Punching part of the shelf panel



Shelf panel punching part adjustable



How to control the width control:

1. The punching part is designed with the handrail, so you can adjust the hole punching station according to the coil width.

2. As to the main rolling forming part, it is controlled by the PLC, simple input the width you want to produce and then the machine frame will be moved fully automatically.

3. As to the bending and shearing part, we will design to match the Max size and then the smallest one also could be made.

4. As to the PLC brand, if you need we can use the world famous Siemens brand.

shearing part of the shelf panel machine

PLC control of the shelf panel machine

So for this type Adjustable width linear shelf panel machine, if you want to know more information, please contact us at any type.
