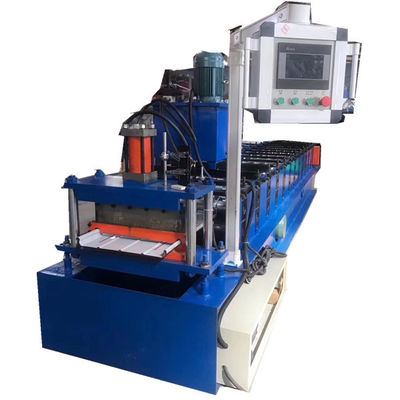

Roofing Sheet Copper Plc Standing Seam Roll Forming Machine

Roofing Sheet Copper Plc Standing Seam Roll Forming Machine
Roofing Sheet Copper Plc Standing Seam Roll Forming Machine Roofing Sheet Copper Plc Standing Seam Roll Forming Machine Roofing Sheet Copper Plc Standing Seam Roll Forming Machine

Large Image :  Roofing Sheet Copper Plc Standing Seam Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: ZTRFM
Certification: CE. SGS
Model Number: Roofing sheet machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 16500 to 24500 USD
Packaging Details: Nude package with anti oil
Delivery Time: 45 working days
Supply Ability: 30 sets per month

Roofing Sheet Copper Plc Standing Seam Roll Forming Machine

Description
Material: Aluminium, Steel,copper,stainless Steel And Titanium Zinc Etc. Speed: 15 To 25 Meter Per Minute
Mold: PLC Control Name: Roofing Sheet Standing Seam Roll Forming Machine
High Light:

plc standing seam roll forming machine

,

copper standing seam roll forming machine

,

plc standing seam roll former

                                                     Standing Seam Roofing Sheet Machine
Standing Seam Roofing Sheet Machine is designed to make the standing seam in batch fully automatic by the rolling forming principle. This part we specially take the Bemo standing seam for example, Bemo type is designed by American company and now it is used all over the world as its good design and special function. The material could be like aluminium, steel,copper,stainless steel and titanium zinc etc, here I show the drawing profile for your reference:
Bemo type standing seam
standing seam drawing profile
Standing Seam Roofing Sheet Machine Parameter For your reference:

No.Main parameter
1Length of the main part7500 х 1650 х 1450 mm
2Weight of main part6 Ton
3Voltage380 V/ 50 HZ 3 Phase (as customer’s request)
4Roller fixerMiddle plate welded
5Frame350 H steel welded
6Frame thickness18 mm thicker to be very strong
7Drive modeChain of 1.25mm
8Material of rollers45# steel, surface hard chromium plating.
9Material of shafts45# steel
10Diameter of shaftsΦ 70 mm
11Number of rollers14rollers
14Main power5.5kw


Bemo standing seam rolling process like this:
rolling process of standing seam profile


Standing Seam Roofing Sheet Machine design for your reference:
Rolling machine of the standing seam machine
Advantages of this type Bemo style standing seam machine.
1. One machine can make three or more types profiles.
2. Side rollers are for two edge shape rolling.
3. Speed can reach 15 to 25 meter per minute.
4. Long time and easy to use.
5. PLC control, cutting length could be controlled by PLC.



Bemo style standing seam machine Curving machine.

Curving machine



Now let us check the machine working videos:

The first one is the cruving machine

This is the standing seam rolling forming machine:
