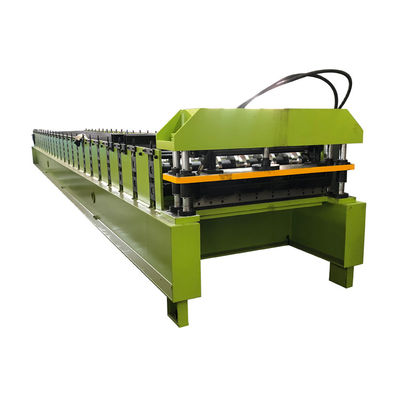

Metal Roof Cladding 1200mm Steel Sheet Roll Forming Machine

Metal Roof Cladding 1200mm Steel Sheet Roll Forming Machine
Metal Roof Cladding 1200mm Steel Sheet Roll Forming Machine Metal Roof Cladding 1200mm Steel Sheet Roll Forming Machine Metal Roof Cladding 1200mm Steel Sheet Roll Forming Machine Metal Roof Cladding 1200mm Steel Sheet Roll Forming Machine

Large Image :  Metal Roof Cladding 1200mm Steel Sheet Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: ZTRFM
Certification: CE, SGS
Model Number: 002
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 14500 USD
Packaging Details: Nude with anti-rusting coil
Delivery Time: 45 WORKING DAYS
Supply Ability: 30 SETS/MONTH

Metal Roof Cladding 1200mm Steel Sheet Roll Forming Machine

Description
Speed: 20 To 25 Meter Per Minute Roller Material: Gcr15 Quencing
Type: High Quality Function: Metal Rolling Forming
High Light:

sgs steel sheet roll forming machine

,

1200mm steel sheet roll forming machine

,

metal roof cladding corrugated roll former

ZTRFM steel roof sheets/metal roof cladding rolling forming machine for UK Market

ZTRFM cold rolling forming machinery supplies steel roof sheets otherwise known as metal roof cladding machine to individuals and businesses all over the world, but different areas have different popular designs, this page mainly we list some popular types in United Kingdom and Europe area.

Zhongtuo steel roof sheets rolling machines provide customizes machines for making a wide range of steel based building materials for use with cladding and roofing.Our metal roof cladding sheets which are an ideal solution for garages and car ports, garden rooms, workshops, barns, stables, factories and warehouses.

Zhongtuo steel roof sheets rolling machines make the products which include PVC plastisol, painted and galvanised steel sheets for roofing and cladding as well as curved sheets and over cladding for asbestos cement roofs. Here are some popular designs for your reference:

Roof Cladding-Box Profile Metal Sheets series:

Box profile steel cladding (aka box section or trapezoidal cladding) is a modern alternative to traditional 3" corrugated (or wriggly tin) metal roofing sheets. Giving a more modern appearance it is becoming favoured with domestic properties and has a more industrial appearance for industrial buildings.

Drawing A: 32/1000 Box Profile:

box profile roofing sheet

MW5RS Box Profile Steel Cladding:

Metal Roof Cladding 1200mm Steel Sheet Roll Forming Machine 1

Accord 333 Profile (35/1000) Steel Cladding:

Metal Roof Cladding 1200mm Steel Sheet Roll Forming Machine 2



3" Corrugated Steel Sheets (14/3) 990.6mm Cover:

Corrugated Steel Sheets (14/3) 990.6mm Cover

Corrugated Steel Sheets

Tile Effect Metal Sheets:

step tile roofing sheet drawing

tile effect metal roofing sheet



Zhongtuo steel roof sheets/metal roof cladding rolling forming machine design idea:

For producing those profiles, Zhongtuo machines give following two options:

Option A: Single layer metal roofing sheets machine either in high speed or lower speed.

Option B: Double layer machine, that means two profiles could be made by one machine to save cost and work space.

Here we take one machine double layer roofing sheet machines we sent to UK for examples:

Double layer roofing sheet machine



The drawing profiles customer chosen:

The coils width is adjustable from 1200mm to 1250mm

Top layer:

IBR TYPE METAL ROOFING SHEET MACHINE
Bottom layer:

Round wave roofing sheet machine


Zhongtuo steel roof sheets/metal roof cladding rolling forming machine parameters for your reference:



According to our experience, United Kingdom customers like to add filming on the layer of the metal roofing, zhongtuo rolling machines also allows you to do the rolling forming both to produce roofing sheet with felt and without felt.

roofing sheet with felt and without felt.
