Product Details:
|
| Type:: | Tile Forming Machine | Production Capacity:: | 8-12m/min |
|---|---|---|---|
| Dimension(L*W*H):: | 6800mm*800mm*1200mm | Power(W):: | 3KW-20.5KW |
| Roller Material:: | 45#steel Chrome Plated | Cutting Blade Material:: | Cr12 Frequency Quenching |
| Control System:: | PLC(imported Brand) | Thickness:: | 0.8-1.2mm |
| Warranty:: | 12 Months | ||
| High Light: | iron sheet making machine,roofing sheet roll forming machine |
||
| Technical parameters: | ||

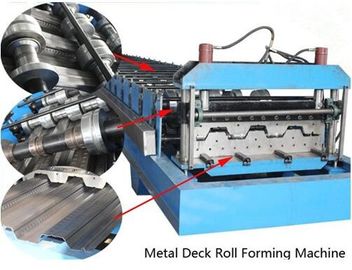

| 1 | Name of commodity & specification | 720 deck roof machine with high quality |
| 2 | Main motor power | 11kw, 3 phase |
| 3 | Hydraulic motor power | 5.5kw |
| 4 | Hydraulic Pressure | 18-20MPa |
| 5 | Voltage | 380V /3phase/ 50 HZ (or as your requirement) |
| 6 | Control System | PLC Delta Inverter |
| 7 | Main Frame | 450mm H-Beam |
| 8 | Backboard Thickness | 22mm |
| 9 | Chain Size | 66mm |
| 10 | Feeding Material | color steel coils |
| 11 | Feeding Thickness | 0.3-0.8mm |
| 12 | Feeding Width | 1000mm |
| 13 | Effective width | 720mm |
| 14 | Productivity | 8-10m/min |
| 15 | Roll Station | 27 |
| 16 | Roller Diameter | 95mm |
| 17 | Roller material | 45# steel |
| 18 | Cutter material | Cr12 , quenched |
| 19 | Cr-Plating Size | 0.05mm |
| 20 | Overall Size | 15000×1200×1100mm |
| 21 | Total Weight | 19T |
| 22 | Components |
Manual Uncoiler-------------------1 set Guiding Platform------------------1 set Coil Strip Leveler------------------1 set Main Machine of Roll Forming------1 set Electric-Motor---------------------1 set Cutting Device--------------------1 set Hydraulic Station------------------1 set PLC Control-----------------------1 set Supporter Table-------------------1 set |
| 23 | Workflow |
Manual decoiling----feeding and guiding---- roll forming----cut to length----run out table |
| 24 | Package | nude in the container |
| 25 | Minimum order quantity | 1 set |
| 26 | Payment terms |
T/T(30% T/T pay in advance, the remaining 70% pay before ship) |
| 27 | Delivery time | 30 working days later after receiving the deposit |
| All technical parameters can be changed, according to user's need. | ||
Packing:
About the machine,It is naked originally,but we will packaged the rollers and the electrical part by waterproof plastic Cloth to prevent rusting machinery before the shippment.
Delivery: 40-50 days
FAQ about roll forming machine :
Q: How is this machine's service life?
A: In the normal maintenance,the service life at least 8 years.
Q: How to maintenance?
A: If using frequently,best coating lubricant on the chain and two ends of the shaft every month,replace the hydraulic oil every 1-2 years.
Q: What can you do if the machine broken?
A: Our machine's warranty period is 1 year,if the broken parts can't repair,we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
Q: Can you be responsible for transport?
A: Yes,please tell me the destination port or address.we have rich experience in transport.
