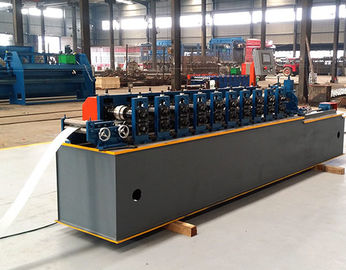

PLC Control System Light Keel Roll Forming Machine For Colored Glaze Steel Tile

PLC Control System Light Keel Roll Forming Machine For Colored Glaze Steel Tile
PLC Control System Light Keel Roll Forming Machine For Colored Glaze Steel Tile PLC Control System Light Keel Roll Forming Machine For Colored Glaze Steel Tile

Large Image :  PLC Control System Light Keel Roll Forming Machine For Colored Glaze Steel Tile

Product Details:
Certification: CE
Model Number: light steel keel
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packaging Details: 1. one 20ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3. Spare parts and some small parts packed in plastic tooling box; 4. All Components Fixed
Delivery Time: 45 days after receipt of buyer's deposit
Payment Terms: T/T, L/C
Supply Ability: 30 sets per month

PLC Control System Light Keel Roll Forming Machine For Colored Glaze Steel Tile

Description
Tile Type:: Colored Glaze Steel Model Number:: Light Keel Roll Forming Machine
Thickness:: 0.3--0.8mm Dimension(L*W*H):: 4.5m*1.2m*1.2m
Roller Material:: 45# Forged Steel Power(W):: 4+4KW
Suitable To Process:: Color Steel Plate Control System:: PLC Control
Warranty:: 12 Months
High Light:

metal stud and track roll forming machine

,

t bar roll forming machine

PLC Control System Light Keel Roll Forming Machine For Colored Glaze Steel Tile



Equipment components:
Man-made uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting
Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.

Main parameters

1. Echnical parameters


Name
Botou light steel keel Metal studs track house structure roll forming machine
Configurations
Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
Control System
PLC Inverter Encoder Touch Screen
Main Frame
400mm H-Beam
Total Power
7.5 kw
Power Supply
380V, 3-Phase,50Hz
Forming Speed
12-24m/min
Roll Station
14 stands
Decoiler capacity
3.5 tons
Roller Diameter
80mm
Effective Width
80-300mm
Feeding Thickness
0.3-1.2mm
Backboard Thickness
20mm
Cutter Standard
GCr12
Roller Standard
Gcr15#
Overall Size
About 8500×1000×1400mm
Total Weight
About 3.2 T
Custom
According to customer's requirements
PLC Control System Light Keel Roll Forming Machine For Colored Glaze Steel Tile 0

Our Company

      Established in 1998. Kingter  has accumulated rich experience in producting tile roll forming machine. Near 20 years' development has made Kexinda the most powerful roll forming equipment supplier in Northern China. We are now staffed by over 200 people.The two production regions in Kexinda span an area of 50 thousand m2. We have established 5 large workshops, including plants for spare parts machining, machine welding, assembly, andsurface treatment.
