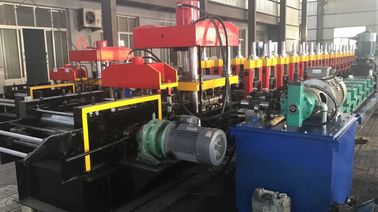

Steel Profile Guardrail Forming Machine / Metal Roll Forming Machine For Construction

China Steel Profile Guardrail Forming Machine / Metal Roll Forming Machine For Construction supplier
Steel Profile Guardrail Forming Machine / Metal Roll Forming Machine For Construction supplier Steel Profile Guardrail Forming Machine / Metal Roll Forming Machine For Construction supplier

Large Image :  Steel Profile Guardrail Forming Machine / Metal Roll Forming Machine For Construction

Product Details:

Place of Origin: Hebei
Brand Name: JK
Certification: CE
Model Number: highway Guardrail

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: 1.Tighten to container with steel wire rope and welded angel iron. 2.Main forming machine and unciler is naked (if you need we can also packed with water-proof plastic) 3 .Roll forming machine PLC control system and moter pump are packed with water-proof p
Delivery Time: 30 days after your pre-deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Type:: Highway Guardrail Production Line Roll Forming Machine Dimension(L*W*H):: 9800*1600*1500 Mm
Weight:: 12Tons Productivity:: 6-10m/min
Material Thickness:: 2.5-3.5 Mm Voltage:: 380V-50HZ-3P (As Requested)
Warranty:: 12 MONTH Frame Material: 300 H-high Grade Steel
Deliver Time:: 40 Days

highway guardrail two waves/thre waves roll forming machine



Wehave years of experience. For the highway guardrail roll forming machine we have the two waves and three waves making machine. Each type we have the standard profile drawing and punching sketch. The guardrail sheet is mainly used for the road side to keep the safety for the people.


Product Description



Machine Description Quantity Delivery time Container Type

Price/ USD

(FOB TIANJIN)

highway guardrail roll forming machine



1 SET

50 working days



2*40GP

35500-83500



Process flow for highway guardrail roll forming machine:
Uncoiling→Feeding&leveling&punching→Roll forming→Measuring length→ Auto cutting→Products receiving



Components of production line

No. Name Unit Qty
1 5T Manual decoiler set 1
2 Main forming machine set 1
3 PLC control system set 1
4 Hydraulic pump station set 1
5 Post cut set 1
6 Electric motor set 1
7 Output table set 1



Normally, we will provide the customer full production line, and basic parts like the decoiler, control station, pump and table. So that the customer can start the production very soon when they received the machine.



Roll Forming Machine description



No. Main parameter
1 Length of the main part 13500*1200*1400mm
2 Weight of main part 10 T
3 Voltage 380V-50HZ-3P (as customer’s request)
4 Roller fixer Guide column
5 Frame iron casting arch frame
6 Frame thickness 40mm
7 Drive mode By chain
8 Material of rollers Cr15
9 Material of shafts 45# steel with tempering
10 Diameter of shafts φ90mm
11 Number of rollers 26 rollers
12 Main power 22kw (Cycloidal planetary gear speed reducer)





Spare parts

Ensure the machine long time working, we will give some easy damage parts with the machine. In case the machine got any problem during the working time. With the spare sparts, the customer can solve the problems very soon by themselves. Then will not delay the project in local.

Steel Profile Guardrail Forming Machine / Metal Roll Forming Machine For Construction

FAQ:

1. How to get a quotation of guard rail machine?
Give me the profile drawing and thickness for the guard rail machine,this is the important.
Other spicific requirements is welcome,such as the speed,power and voltage you want.



2. Terms of payment:
30% T/T, Balance to be paid before shipping after inspection.Also we accept the payment L/C, O/A , D/P.



3. How long the guard rail machinecould be made?
Normally speaking, guard rail machinecould be made without 45 working days. If you need roll forming machines in a hurry, we can make it for you less than a month.



4. What is your after-sale service?
guard rail machinewarranty period is 12months,if the broken parts can't be repaired,we can send new to replace for free,but you need to pay the express cost yourself.we supply the technical support for the whole life of the equipment.



5. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of roll forming machines.



6. How to visit your company?
a. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
