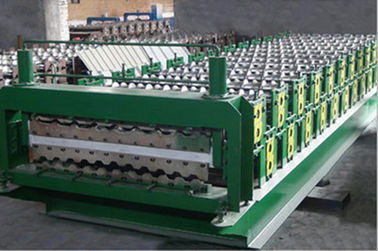

Chain Driving Double Layer Roll Forming Machine 1200 Mm Coil Sheet Feeding

China Chain Driving Double Layer Roll Forming Machine 1200 Mm Coil Sheet Feeding supplier
Chain Driving Double Layer Roll Forming Machine 1200 Mm Coil Sheet Feeding supplier Chain Driving Double Layer Roll Forming Machine 1200 Mm Coil Sheet Feeding supplier

Large Image :  Chain Driving Double Layer Roll Forming Machine 1200 Mm Coil Sheet Feeding

Product Details:

Place of Origin: HEBEI
Brand Name: JK
Certification: CE
Model Number: 840&850

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: negotiated
Packaging Details: 1.Tighten to container with steel wire rope and welded angel iron. 2.Main forming machine and unciler is naked (if you need we can also packed with water-proof plastic) 3.PLC control system and moter pump are packed with water-proof plastic coverage.
Delivery Time: within30 days after receiving deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 SETS PER MONTH
Contact Now
Detailed Product Description
Roof Tile And Wall Roll Forming Machine Tile Type: Colored Steel Dimension(L*W*H): 6500*1500*1500
Weight: About: 3.5 T Voltage: 380V.50HZ.3Phase
Roll Material:: 45# High Grade Steel Production Capacity:: 8-12M/Min
Control System: Totally Automatic PLC Cutting System:: Automatic Hydyaulic Cutting

Chain Driving Double Layer Roll Forming Machine 1200 mm Coil Sheet Feeding

The steel tiles produced by roof tile forming machine look beautiful, elegant and noble. They are widely used as the roof of garden, factory, hotel, exhibition center and villa,etc.

Tile Roll Forming Machine Material:
1. Electric elements: Mitsubishi PLC & transducer from Japan.
2. Anti-rust roller: High grade No. 45 forged steel. Plated with 0.05mm hard chrome
3. Well resisting active shaft: High grade No. 45 carbon wrought steel.
4. Cutter blade: Cr12 mould steel with quenched treatment
5. Precision: shafts are tooled by grinding machine at least twice. Rollers are CNC processed.



Offer Factory Price Roof Tile Roll Forming Machine


Item Specification


Material

Type Pre-painted steel coil & galvanized coils
Thickness 0.25-0.8mm
Yield strength 235Mpa.Q345Mpa, Q550Mpa
Roller material No.45 forged steel
Forming speed About 15-20m/min
Output speed 13-15m/min
Speed adjusting mode AC Frequency
Roller drive Decelerating motor + Chain drive
Cutting mode Hydraulic cutting
Cutter material Cr12 mould steel
Length measurement Encoder
Control mode Panasonic or Delta PLC
Operating mode Button + Panasonic/Delta Touch screen
Main motor 5.5KW
Hydraulic station motor 3KW


The profiles can be sustomized. If you don't have any idea, Just tell us your country, we can provide advices for you.


Profiles for reference.
Chain Driving Double Layer Roll Forming Machine 1200 Mm Coil Sheet Feeding
Chain Driving Double Layer Roll Forming Machine 1200 Mm Coil Sheet Feeding

Factory:

      We have established in 2008 as a professional manufacturer of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more than 10 years of experience and strict quality control, our products meet International Standard. We are the leading manufacturer of roll forming machine in China. We manufacture various kinds of roll forming machines for producing such products as Roof Tile, Wall Panel, Roofing Corrugated Sheet, Floor Deck, C & Z Purling, Highway Guardrail, Sandwich Panel, Container Board, Car Panel, Roll Shutter Door, Downspout, Decorated gusset, Steel Pipe, etc.

FAQ:
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
