Water Gutter Cold Metal Roll Forming Machines , Three Phases 6-12M/Min Capability
1. The advantage of water gutter cold roll forming machine
gutter cold roll forming machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.

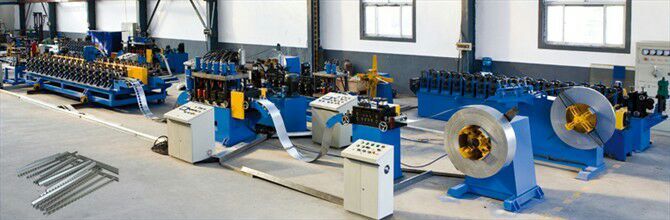

gutter cold roll forming machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.
2. Main parameter of water gutter cold roll forming equipment
| No. | main parameter of gutter roll forming machine | ||
| 1 | Suitable to process | Color steel plate | |
| 2 | Width of the plate | 200-600mm | |
| 3 | Rollers | 14-16rows | |
| 4 | Dimensions | 8.6*0.8*1.2m | |
| 5 | Power | 4+3kw | |
| 6 | Thickness of the plate | 0.3-0.8mm | |
| 7 | Productivity | 8-12m/min | |
| 8 | Diameter of the roller | 52mm | |
| 9 | Weight | About 4.5 T | |
| 10 | Voltage | 380V 50Hz 3phases | |
| 11 | Rolling material | Carbon Steel 45# | |
| 12 | Material of the cutting plate | Cr12 | |
| 13 | Processing precision | Within 1.00mm | |
| 14 | Control system | PLC control | |
| 15 | Side panel of machine | 14mm | |
| 16 | Main structure of the machine | 300 H steel | |
| 17 | Weight | About 4.5 T | |

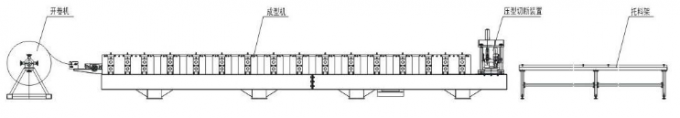

Work flow
Manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system- output table

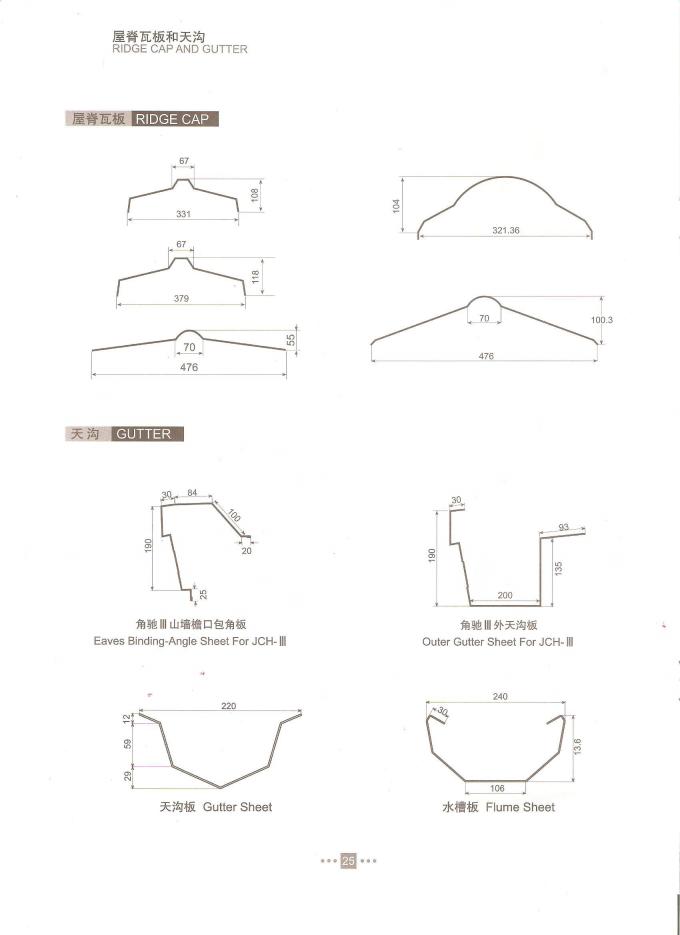

Profile Drawing
