Ridge Cap Cold Roll Forming Machine Hydralic 7.5KW 12 Rows Low Noise
Product Description
Equipment components:
Man-made uncoiler →Roll forming machine →computer control system →hydraulic control system →cutting
We design each machine according to user requirement.
Below techinical parameters can be adjusted if needed.
1. Main machine Dimension:6600mm*1000mm*1500mm;
2. Machine Under Frame:Steel 350 H-beam;
3. Sidewall : 45# Steel plates(16mm);
4. Roller Stations: 14 Steps ;
5. Shaft Diameter: 75mm;
6. Main Shaft Material:45# steel with finish turning ;
7. Roller Material:45# Forging Steel with Chromium Plate;
8. Chromium Plate Thickness:0.05mm;
9. Motor Power: 5.5kw+4kw;
10. Reducer Type:8#Gear Speed Reducer--- Shanghai,China
11. Chain Wheel and Cycle Chain : 1 Inch;
12. Production Line:0-3 m/min
13. The yield strength of the machine is 450-550 MPA.

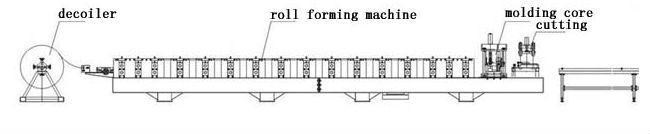

Decoiler→Flating→Feeding →Forming→Cut to length→Colletion
(finish goods)

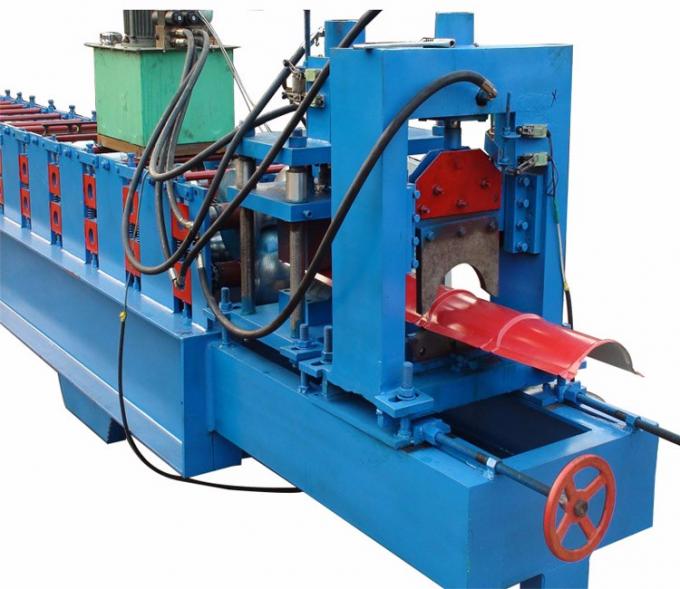

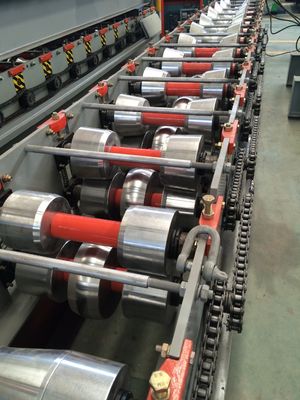

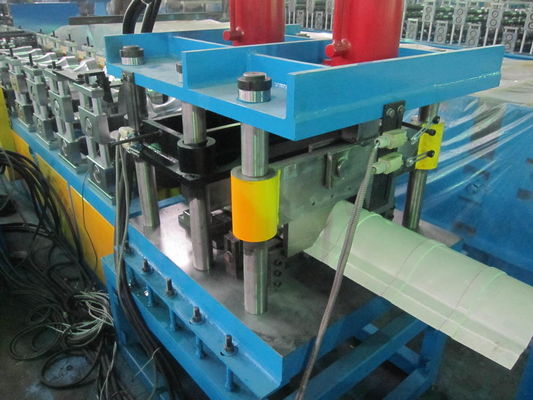

Product Pictures
Our Services
a. TWO-Years product warranty.
b. Training and installation available
c. The technical support for the whole life
Sales Map
Started from 1998, we have exported high quality Aluminum Metal Roof Ridge Cap Making Machines to more than 20 countries, including: South Africa, Tanzania, Australia, India, Indonesia, Iran, Macedonia, Ghana, Trinidad and Tobago, Sri Lanka, Sudan, Guyana, America, Abidjan, Kazakhstan, Nigeria, Bolivia, Bengal, Chile, Armenia, the UK, GHANA...
