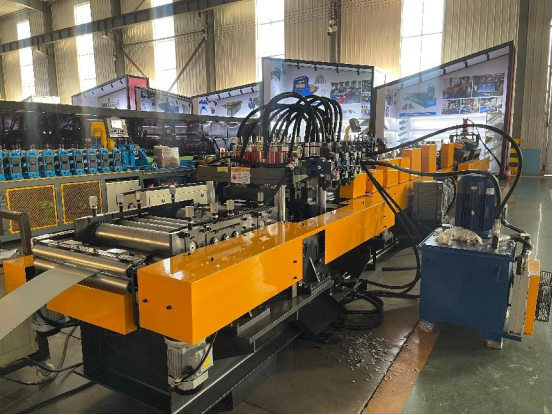

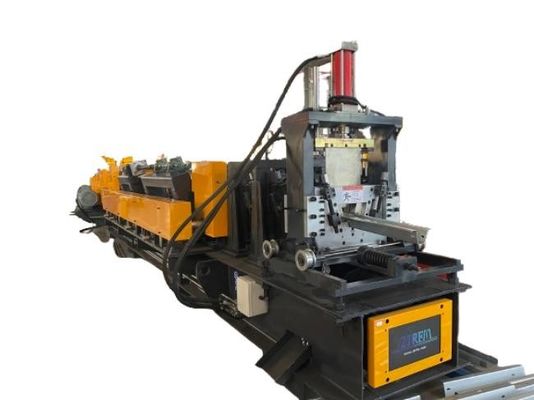

Omega Roll Forming Machine

Light Gauge steel roll forming machine is the most popular machine and its product includes stud, track, furring channel, main channel (primary channel), carrying channel, wall angle, corner angle, edge bead, shadow line wall angle, top hat, clip, etc, our machine has an extensive use in Drywall system, Ceiling system and Floor system. Thickness is normally 0.4-0.6mm or up to 1.2mm.

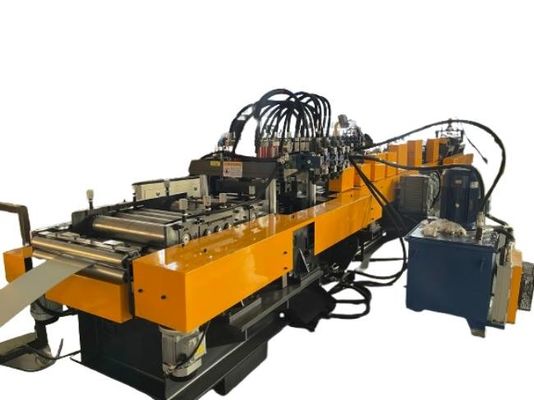

We could make roll forming machine with flying cut system to make working speed faster around 40m/min. And according to your drawing, we offer you double-row roll forming machine or triple-row roll forming machine that you could make two or three profiles in one machine, it reduces your machine cost and make it more affordable.

Example Profiles

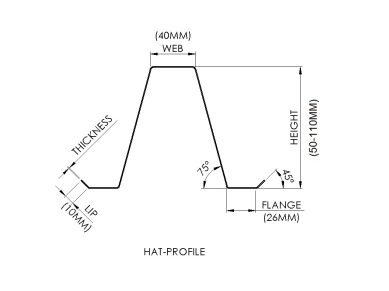

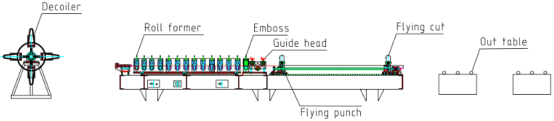

Working flow:

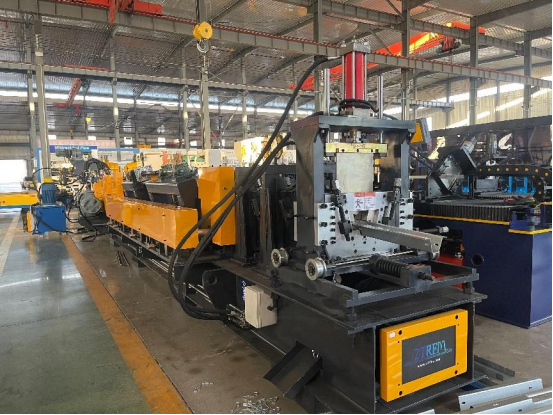

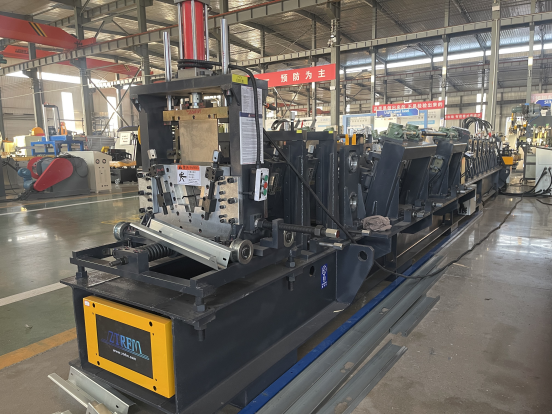

Omega Roll Forming Machine

Technical standard

Equipment name:LA series Several shape steel change roller forming equipment				Unit type :LA(30)-40			Motor for 15KW drive
1	Forming host	feed	Guide shaft + guide wheel

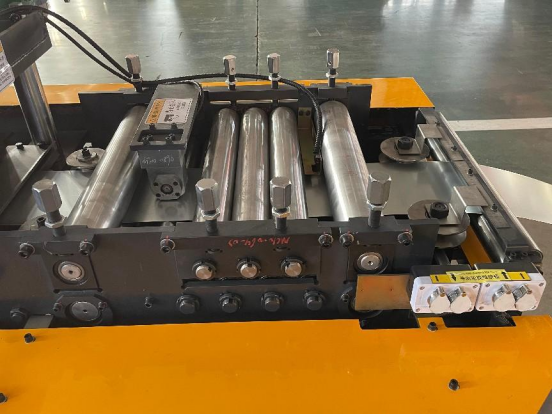

		leveling	Upper three and four + two channels, full solid shaft heat treatment and fine car after plating

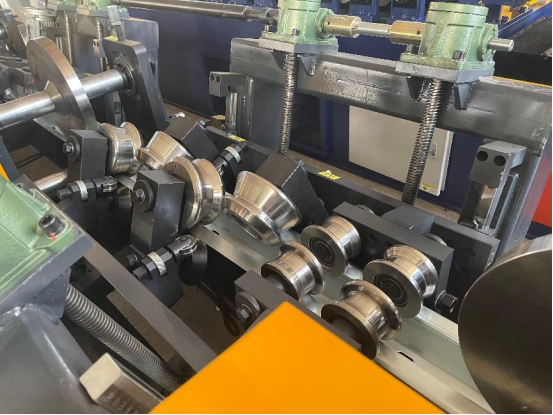

		Main molding	16 channels (one of them is 72-80 degrees)
			20A chain
		Transfer	With transmission, the upper and lower shaft gear drive
		The punch cut	category Front flush single hole preshoot diplopore   Before ping Plate shear shaping After cutting   specifications 14x30 8x20   410x2.0 Infinite shear Note 1 Straight groove hole Straight groove hole   Note 2   Note 1: If the main body of front double punch body should be used, the main body of front single punch body " should be marked in Note 1; Note 2:The default long hole is the long bar hole,If you need a straight hole,The "straight groove hole" should be marked in Note 2; Note 3: The default long hole in the direction is parallel to the forming direction. If the long hole is required to be perpendicular to the forming direction, mark "vertical" in Note 2; Note 4: The specifications of the required post-molding shear are:
2	Control system	Main control cabinet	1
		Change distribution box	1 (mounted in middle of frame)
		External controller	1 (easy to control forward and backward during production and commissioning)
		Main accessories brand	PLC (Panasonic, Japan), Relay (Schneider, France), proximity Switch (Otonix, Korea), Length Encoder (International premium brand) Touch Screen (Warren)
3	Drive	Master drive	electrical machinery
			15kw
		The punch cut	Hydraulic station power is 7.5KW + air cooler
			The fuel tank volume is 150 liters
		Main brand	Solenoid valve oil research Yuci
4	Discharge machine	load	4t
		Hold tight way	Manual tight
		Brake	Spindle double hold tight
5	Testimony table	The length of the feeding	6m
		Testimony method	The frame body is welded with groove steel and Angle steel, and the roller is mounted on the surface

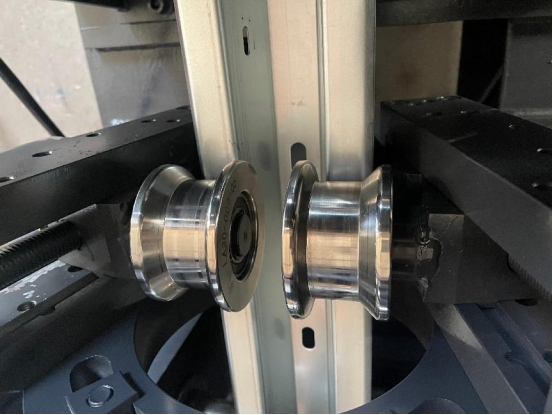

6	Performance parameter	Roller	Material:Cr12
			Processing technology: numerical control processing after heat treatment to HRC 58-60, fine car
		è½´	Material:40Cr(φ60)
			Processing technology: CNC processing after quality treatment HRC 28-32, fine car electroplating
		Weight	The whole machine weight is about 10 tons
2. Production of product parameters
1	Production product specifications	Thickness of slab:0.8~2.0mm
2	Out of the board speed	High speed 28 m / minute, comprehensive speed 12 m / minute-18 m / minute (according to the number of holes);
3	Material applicable	Hot or hot dip galvanized strip steel with yield strength not higher than 440 Mpa
3. Attached accessories and spare parts
Spare parts		Standard equipment Name Model Quantity Remarks Standard equipment   1 Straight groove hole   1 Straight groove hole
Tool		1 set			Instructions	1 copy
Equipment color		Main body blue, white edge, frame gray black
