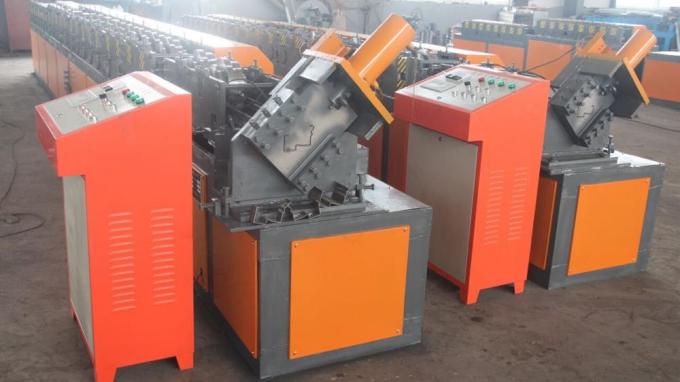

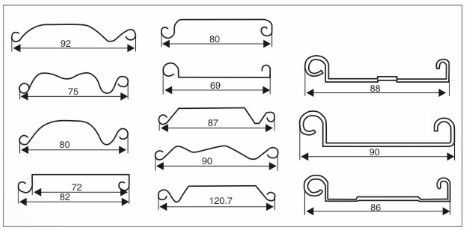

Bar Stud And Track Roll Forming Machine Ceiling Main And Cross T Grid Channel
Machine components
De-coiler------------------------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
Punching device---------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Production support table-----------------------1set
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Photo | ||
| Width | 300mm | 500mm |
| Capacity | Max 3tons | From 3-5 tons |
| Inner diameter | φ450-550mm | φ450-550mm |
| Outer diameter | φ1500mm | φ1800mm |
roll forming
(1) Rolled Material: Cold Rolled Steel Sheet
(2) Material Thickness: 0.2-0.4mm
(3) Rollers: 14 Groups
(4) Material for Rollers: 45# steel(quenching and harding and chroming)
(5) Material for shaft: 45# steel(quenching and harding and chroming)
(6) Hardness for Heat Treatment: HRC55 – 60
(7) Diameter of shaft: 40mm
(8) Frame panel thickness: 20mm
(9) Bottom frame: 36# H-section steel
(10) Motor Power: 3kw
(11) Driven type: gear
Cutting
(1) Material for Cut-Off Modular:Cr12 steel
(2) Hardness for Heat Treatment:HRC55 – 60
(3) Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Power:5.5kw
PLC
| Main item | Parameter detail |
| PLC | Delta(standard) or according to your request |
| Inverter | China brand(standard) or according to your request |
| Touch screen | Mcgs(standard) or according to your request |
| Encoder | China brand(standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
Hydraulic pump
| Main Item | Parameter detail |
| Motor | 3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system | Cooling fan |
