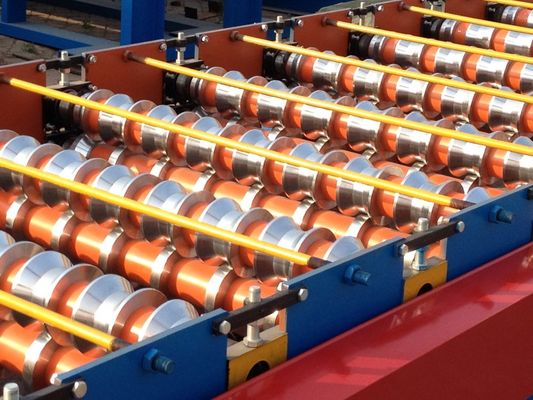

Solid Shaft Roof Panel Roll Forming Machine 5.5Kw Produce Building Material
1. machine technical Parameters
| 1) Main Motor Power: 5.5KW |
| 2)Hydraulic Station Power: 4KW |
| 3) Hydraulic Oil Pump: CB-E310 |
| 4) Sprocket: P-25.4 |
| 5) Roller Station: 14 |
| 6) Yield Strength: 32MPa |
| 7) Diameter of Principal Axis: 95mm |
| 8) Material of Roller: 45#steel hard chrome plating |
| 9) Processing Speed: 0-15m/min |
| 10) Thickness: 0.3-1mm |
| 11) Installation Dimension (L*W*H): 7.5m*1.5m*1.2m |
| 12) Total Weight: 4.8T |
| 13) Coil Width: 1000/1250mm |
| 14) Cover Width: 840/1040mm |
| 15) Equipment Parts: forming machine, hydraulic cutter, hydraulic station, electric controlling system and counter. |
| Decoiler | 1set |
| Feeding & guiding device | 1set |
| Main roll forming machine | 1set |
| Hydraulic cutting system | 1set |
| Controlling system | 1set |
| Run out table | 1set |
FAQ
1: How to play order:
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2: How to visit our company:
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3: When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.
4. What's the after- sale service:
we sent technician to your country to fix the machine.The buyer should bear all the cost including:
visa, round trip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.
5. How about the warranty: 12 months limits warranty
