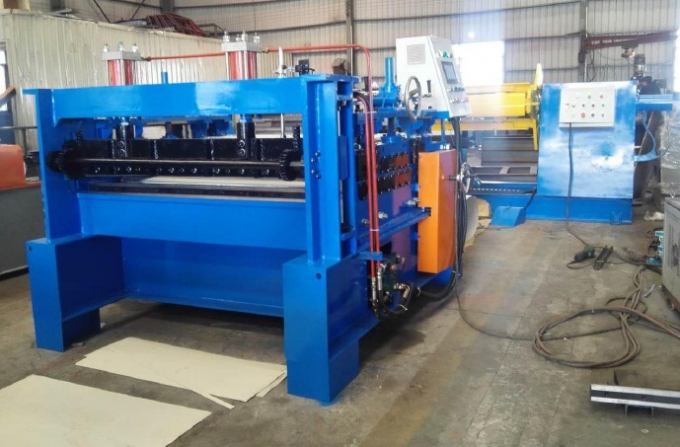

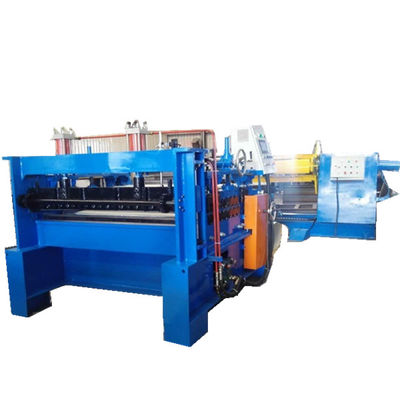

Simple cut to length machine with slitting function
Here I will introduce one type cut to length machine with the slitting function for the thin sheet.

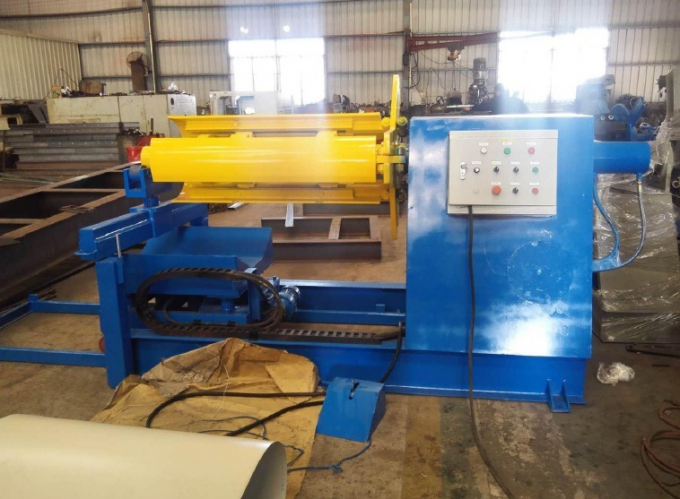

This equipment is used for cutting the coil to the specified sheet, sometime, slitting to the specified width also, it is composed by uncoiling, leveling, and automatic length measuring and cutting. Electrical controlling by AC variable frequency and servo control, which has better length precision and efficiency. Applicable Materials:Tinplate, silicon steel, aluminum, copper, stainless steel and galvanized steel, etc. The one I introduce here could be used to process the thickness from 0.2 to 1.2mm and the coil width to 1.5 meter width.
The machine cutting speed can reach 15 to 20 meter per minute.
Simple cut to length machine with slitting function working flow for your reference:
Input : 1250mm
Thickness : 0.5-1.0mm GI, SS, Aluminum, film coated sheet
Rollers : 4 up 5down,2 input
Shaft: Φ110mm
Wall panel: 25mm, A3 400H steel frame
Power: 11 kw (JIEJIA BRAND MOTOR FAMOUS IN CHINA)
Speed: 16m/min
Hydraulic power: 5.5 kw.
Driven : Chain
Cutting blade and slitting blade: Cr12
Slitting : 6 pcs
The machine can straighten leveling then cut to length
Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase (this is can depend on customer request)
Solenoid valve: YUKEN
Cutting motion: The main machine automatically stops and then cutting. After the cutting, the main machine will automatically start.
Material of blade: CR12 , cut form down to up.

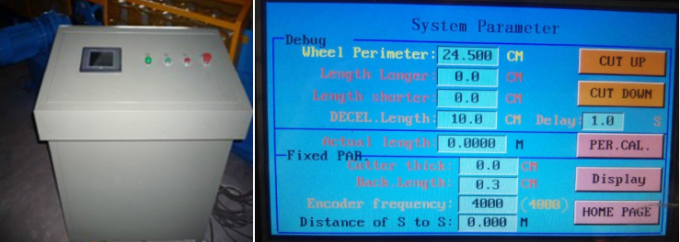

Length measuring: Automatic length measuring
Tolerance of length: 10+/- 1.5mm
This production line is for the thin sheet later, in our website, there are more type and mode cut to length machine for your reference: like thickness from 1 to 3.mm, from 3 to 6.0mm and others, all the cut to length machine could be customized according to customer requirements.
