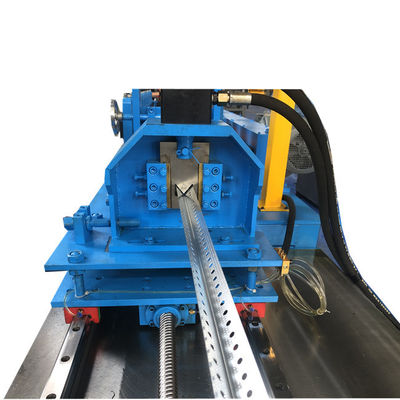

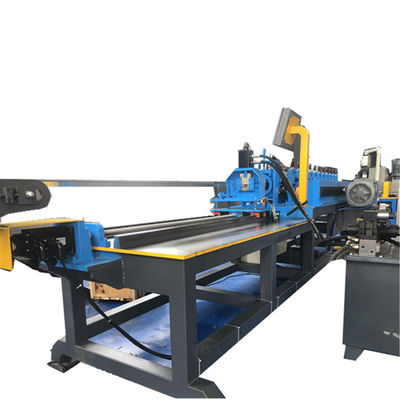

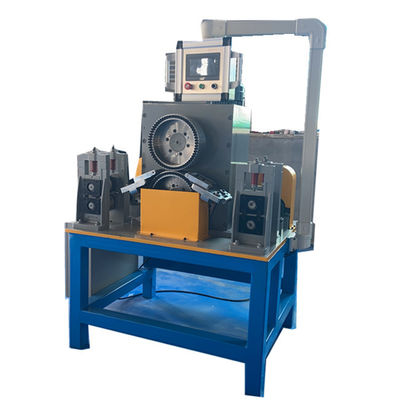

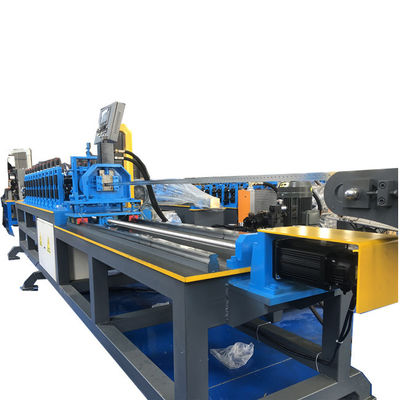

Rotary Punching Slotted Angle Rolling Forming Machine
Rotary Punching Slotted Angle Rolling Forming Machine is designed to make the slotted angle in batch fully automatically. Slotted angle helps you build an efficient framing system for a variety of uses from machine guards to hand rails. Slotted angle is the most versatile, time and cost effective construction material available for building carts, ladders, benches, shelving, cases, racks or any other type of structure. Made of either 12 or 14 gauge roll-formed steel. Here is the drawing profile for your reference:

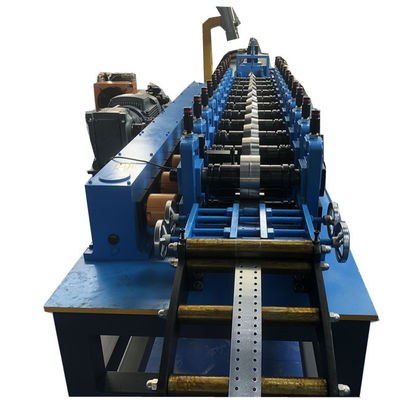

Main Rolling Forming Machine:
| Shaft material | 45# STEEL |
| Shaft diameter | 60mm,solid shaft |
| Roller material | GB-Cr12 mould steel with quenched treatment |
| Roller station | 12 stations |
| Bearing | China famous brand Harbin |
| Work speed | 0-60m/min(including cutting process) |
| Work power | 11 kw |
| Transmission | By gear(more precision and faster than chain) |
| Voltage | AC 415V,50Hz,3Phases(Or as customers’ request) |
| Appearance | Good appearance with no burrs in steel body nor traces of rust or defects in painting. Good electrical and hydraulic cable organization Car painting make the machine more glossy |
Rotary Punching Slotted Angle Rolling Forming Machine advantages:

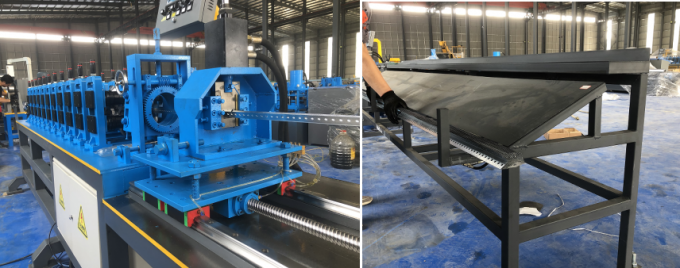

High speed working
When working, it is small noise and easy to use. Here is the machine working videos for your reference.
