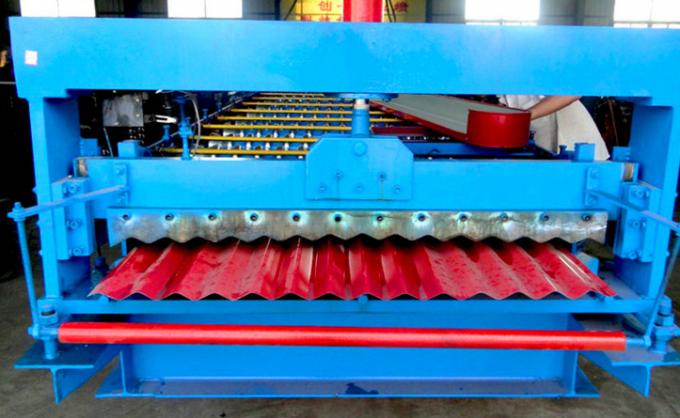

Roofing Barrel Corrugated Sheet Metal Roll Forming Machines PLC Controlled System

Roofing Barrel Corrugated Sheet Metal Roll Forming Machines PLC Controled System



Technical Specifications:
Length Of The Sheet : 2500mm/3000mm/3660mm/4267mm. Max
Width Of The Sheet : 762/914/1000 mm. To 1250 mm
Thickness Range Of Sheet : 0.15 Mm To 0.45 Mm
Material To Be Corrugated : Full Hard, Semi-Hard, Soft Galvanised Sheets, Alu-Zinc Alloy & Ppgi Sheet
Drive : 22kw, Ac, For Type A 3 Phase
O.D. Of Corrugation Rolls : 380 mm (20mm Diameter Rod)
O.D. Of Pinch Rolls : 317 mm.
Corugation Parameters : As Per 3316 To Jis-Sgch –1987.
Wt. Of The Machine : 6 Tonnes Approx .
Production Capacity : 1.5-18 Meter Per Minute.

Sheets thickness and machine capacity
Sheet Thickness(mm)	Nature of Sheets	No. of Sheet Per Pass	Output Rate (sheets/8 hrs)
			100%	80%
.65 - .40	Annealed	1	5,760	4,600
.40 - .35	Unannealed	1	5,760	4,600
.35 - .25	Unannealed	2	11,250	9,200
.25 - .20	Unannealed	3	17,280	13,800
.20 - .14	Unannealed	4	23,040	18,400

Specification
Models	Roll Revolution	Corrugation	Sheet length (max.)	Motor	Floor space	Net weight (Solid Corrugation roll)
RE-82	12rpm	Large	8 ft	7.5kw	4,080 x 2,400	8,300
			2.5m
RE-102			10 ft	11kw	4,765 x 2,400	9,500
			3.1m
RE-122			12 ft	15kw	5,545 x 2,400	11,000
			3.7m

Company Information



    Cangzhou Kingter Roll Forming Machine Co., Ltd is a professional manufacturer and exporter of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in markets throughout the world, such as Asia, Africa, Europe,South America, Australia and so on.

We specialized in manufacturing Color steel roll forming machinery, C U M Z purlin roll forming machine,Glazed tile roll forming machine,floor deck roll forming machine, shutter door roll forming machine, highway guardrail roll forming machine, downspout machine, welding pipe machine. For metal processing, we have slitting machine, cutting machine, decoiler, punching machine and others.
