Double Layer Roll Forming Machine
Double Layer Roll Forming Machine is designed to make the metal roofing sheet in the double layer forms, that means one machine can make two profiles by the rolling forming machine principle. In the following part, let us take the following drawing profile for example:
First IBR Layer:
Second layer:
Double Layer Roll Forming Machine we design like this:

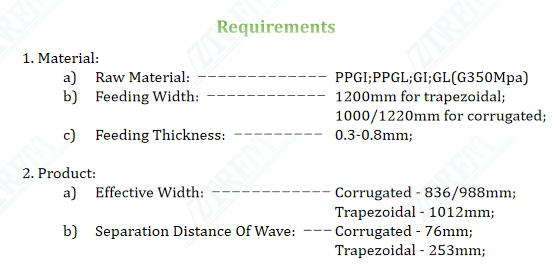

1. Description Of Goods: Double Layer Roll Forming Machine
Packing List:
Hydraulic Decoiler or manual decoiler ---------- 1 set;
Main Roll Forming Machine ------- 1 set;
3M Simple Collecting Product Table -- 1 set;
Hydraulic Station -------------- 1 set;
PLC Control Cabinet ------------ 1 set;

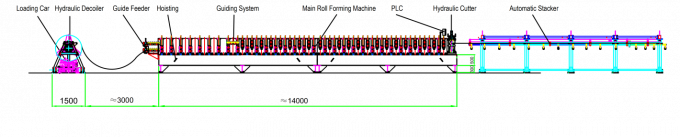

Double Layer Machine Production Line Layout And Process Flow:
| No. | Item | Specification |
|
Whole
Line |
Working Speed | 0-20m/min |
| Total Power | 22kW; 380V-50Hz-3Phase | |
| Equipment Weight | 8.5 Tons | |
| Equipment Dimension | 8500mm*1850mm*1500mm | |
| Container | 1*40”GP | |
| Equipment Color | Blue Or Customizable | |
| Equipment Package | Nude Package | |
| Protective Cover | Optional |

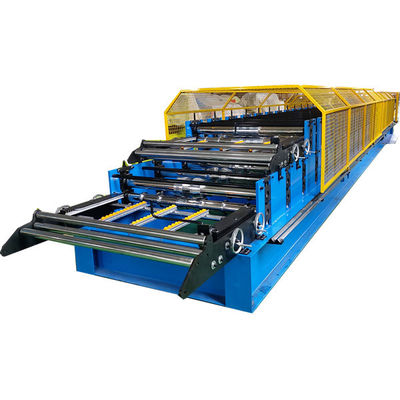

For the hydraulic decoiler 7 ton, 8 ton or 10 Ton decoiler, we make it like the following pictures:
| No. | Item | Specification |
|
Hydraulic
Decoiler |
Decoiling Type | Actively Uncoiling Type |
| Loading Capacity | 12 Tons | |
| Loading Width | Max. 1250mm | |
| Coil Inner Diameter | 450-550mm | |
| Coil Outer Diameter | Max. 1500mm | |
| Motor | 7.5kW+3kW |

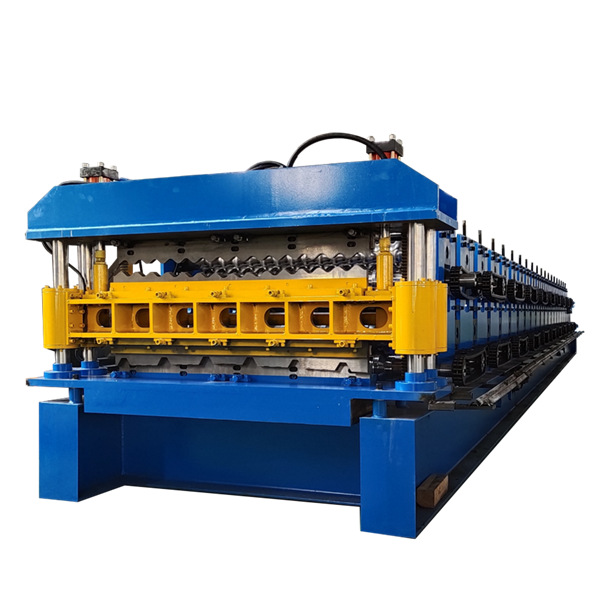

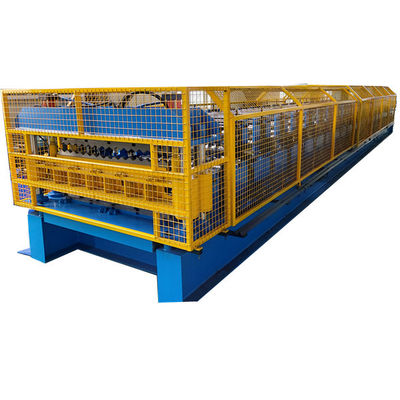

Double layer rolling forming machine Images And Specifications
| No. | Item | Specification |
|
Main Roll Forming Machine |
Main Forming Power | 7.5 kW; 380V-50Hz-3Phase |
| Speed | 0-20m/min | |
| Drive Type | 1'' Single Chain | |
| Machine Architecture | Midde-plate Construction; 20mm Thick | |
| Roller Station | 18 Stations + 18 stations | |
| Roller Shaft | φ75mm Solid Shafts, with quenched | |

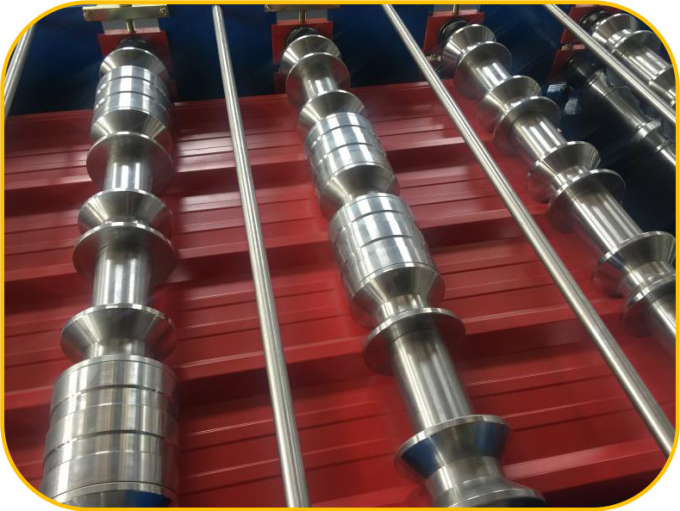

| Roller |
45# Steel HRC58-62°; Surface Hard Chromium Plating |
|
| Bearing | Chinese Famous Brand Harbin | |
| Main Frame | 400# H-beam Steel Welded |
For the double layer machine, it could be either two IBR profiles or one IBR with one step tile. For this type machine, if you want to know more information, please contact us at any time.
