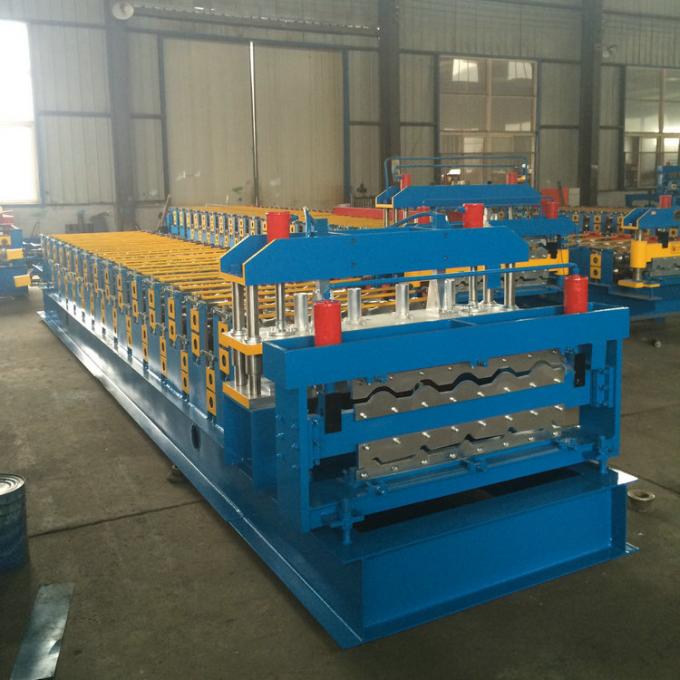

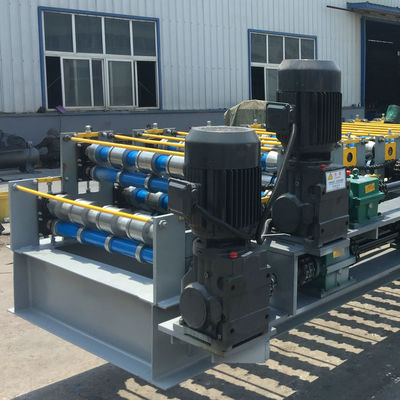

Roof And Wall Double Layer Roll Forming Machine 14 Rows Roller Station

High quality Roof And Wall Double Layer Roll Forming Machine 14 Rows Roller Station from China, China's leading product market double deck roll forming machine three layer product, with strict quality control tile making machine factories, producing high quality tile making machine Products.

SKU: 2d889b99a7e5 Category: Tags: , ,

Roof and Wall Double Layerl Roll Forming Machine 5.5KW--25kw Power For Building



Product Description



roll forming machine consists of uncoiler and its base,infeed guides,fixd positiondriven forming stations,shearing device,hydraulic station,PLC control console and so on.Our company has hundreds of profile models for this series roll forming machine,We can design different kinds of profile and fittings for machine,as per customers' requirements.





No.

 corruagted roll forming machine
  Suitable material Color steel sheet ,galvanized steel sheet, aluminium sheet
2 Width of material 1200mm or as you required
6 Thickness of material 0.3-0.8mm or as your needs
2 Working speed 10-12m/min
3 Main motor power 4kw with cycloidal reducer
4 Hydraulic station power 3kw
5 Electrical control system PLC control system
7 Shaft diameter 80mm
8 Roller station

14 rows


10 Dimension 7000x1500x1910mm
11 Weight About 5 T
12 Voltage 380V 3phase 50HZ or as the customer's requirements
13 Material of roller High grade 45# forged steel plated with hard chrome plating
14 Material of cutting Cr12 mould steel with quenched treatment
15 Working time Can be 24 hours
16 Workers 1-2 only



Please Note: All the parameters can be designed as your requirement.



Let me show you how to operate Steel Bamboo Roofing Sheets Making Machine :

Decoiling→Feeding & Guiding→Roll Forming→ Cutting→Finished Products To Support Table



Packaging & Shipping

Straight welded pipe mills package Wiped Anti Rust Oil, Rollers and Shafters covered by waterproof film,Hydraulic station, PLC control Box, Spare parts and some small parts packed in plywood box. All Components Fixed by steel wire with Container.



Company Information



Cangzhou Kingter Roll Forming Machine Co., Ltd is a professional manufacturer and exporter of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in markets throughout the world, such as Asia, Africa, Europe,South America, Australia and so on.

We specialized in manufacturingColor steel roll forming machinery,C U M Z purlin roll forming machine,Glazed tile roll forming machine,floordeck roll forming machine,shutter door roll forming machine,highway guardrail roll forming machine, downspout machine, welding pipe machine. For metal processing, we have slitting machine, cutting machine, decoiler, punching machine and others.
