High quality Rolling Shutter Door Interlocked Tube Rolling Forming Machine from China, China's leading product market Profile Roll Forming Machine product market, With strict quality control Profile Roll Forming Machine factories, Producing high quality Rolling Shutter Door Interlocked Tube Rolling Forming Machine Products.

SKU: 6026238b3004 Category: Tags: , ,

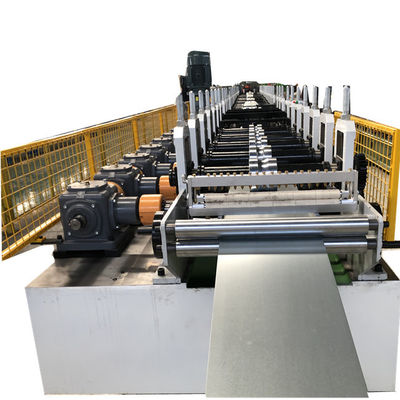

                                   Rolling shutter door interlocked tube rolling forming machine

Rolling shutter door interlocked tube rolling forming machine is designed to make the tubes by the interlocked types and rolling forming principle. The use of octagonal pipes or interlocked tube mainly involves fields such as construction engineering, mechanical equipment, transportation, and aerospace.

In construction projects, octagonal pipes are mainly used as protective pipes for wires and cables, as well as for drainage pipes. The design of its eight end corners makes the pipeline connection more firm and tight, while also having good compressive and tensile properties, which can effectively protect wires and cables from external damage. In addition, due to its good structural stability and ability to withstand significant pressure and weight, octagonal pipes are also commonly used as support and load-bearing components, such as in the construction of bridges, high-rise buildings, and other engineering projects. Here are some drawing profiles for your reference:



Machine parameters:

Feeding materials:0.60mm×W, PPGI/PPGL, G250-350Mpa

Machine frame type:open style individual structure with welded platform by beam

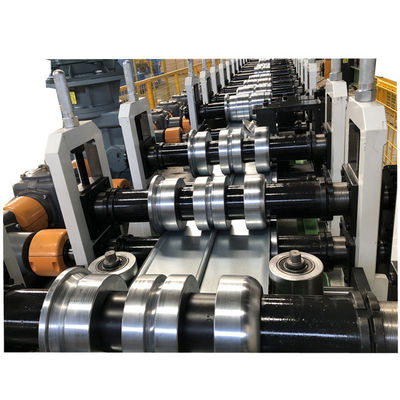

Forming station:19 stations roller forming +1 stations roller punching + 1 station rectifying

Main shaft material:45# Round steel, heat treatment,HRC40-45, Φ70mm /

Rollers material:Gcr15, ball bearing steel, quenching HRC 52-55C°, chrome coating 0.05mm /

Bearing:Chinese famous brand ZWZ / HRB brand

Transducer:V1000 YASKAWA ,Japan

Operation system: Operation cabinet + Emergency remote control unit
PLC Siemens brand: Encode/Omron, Japan brand

Other electricians/Schneider and Omron brand.

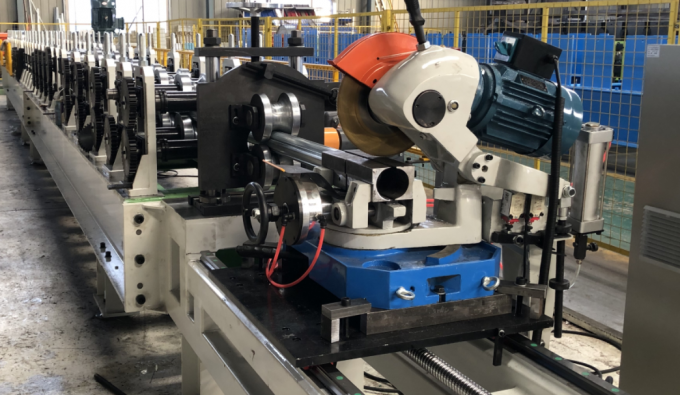

More details of interlocked tube rolling forming machine:

Here is the machine working videos for your reference:
