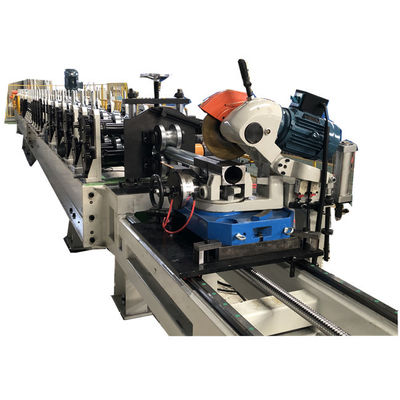

Rolling Shutter Door Interlocked Tube Roll Forming Machine For Octagonal Pipe Production
Precision-built for octagonal & interlocked tube production, our Rolling Shutter Door Interlocked Tube Roll Forming Machine is engineered to mass-produce high-quality interlocked tubes for industries like construction, machinery, and transportation. Utilizing the roll forming principle, this machine creates durable, tightly connected tubes ideal for applications demanding structural stability.
Wide Application of Interlocked & Octagonal Tubes
The interlocked tubes produced by this machine offer superior performance across multiple industries:
- Construction Engineering:
- Protective pipes for wires and cables with firm, tight connections
- Drainage pipes with excellent compressive and tensile properties
- Support and load-bearing parts for bridges and high-rise buildings
- Mechanical Equipment: Robust frames and structural components
- Transportation & Aerospace: Lightweight yet strong structural parts
Contact us for detailed drawing profiles of the tubes for your specific applications.
Core Forming Process & Machine Advantages
The machine transforms raw materials into interlocked tubes through a systematic, continuous process with key features:
- Multi-Side Rollers: Ensure smooth, visually consistent interlock connections without burrs
- Precise Shearing Options: Choose between disk shearing or cold disk shearing (servo motor controlled) for accurate length cutting
Detailed Machine Parameters
| Parameter Category | Details |
|---|---|
| Feeding Materials | 0.60mm*W (width customizable), PPGI/PPGL, G250-350Mpa strength |
| Machine Frame Type | Open-style individual structure with welded platform |
| Forming Stations | 19 roller forming + 1 roller punching + 1 rectifying station |
| Main Shaft | 45# Round Steel, heat-treated (HRC40-45), Φ70mm diameter |
| Rollers | GCr15 ball bearing steel, quenched (HRC52-55C°) + 0.05mm chrome coating |
| Bearing | ZWZ / HRB (Chinese brands) |
| Transducer | Japan YASKAWA V1000 |
| Operation System | Operation cabinet + Emergency remote control unit |
| PLC & Encode | Siemens PLC; Omron Encode (Japan) |
| Other Electrical Parts | Schneider & Omron brands |
See the Machine in Action
Request our working video to visualize the entire production process from material feeding to finished tube output.
Customize Your Solution
We can tailor the machine to your specific requirements including tube dimensions, material compatibility, or processing functions. Contact us to discuss customization options for your interlocked tube production line.
