Roof and Wall Panel Machinery
Here share some metal roofing sheet machines and wall cladding machines which we have sent to USA market. Like the Ag panel rolling machine, imperial panel machine
Max-Rib Panel roofing sheet machine , 3'TUFF RIB panel machine, Multi-Rib Panel machine, purline bearing rib panel and others. We will list drawing profile and rolling forming machine working videos for you to choose. We can not list all of them here, when you need to customize machines, simple show drawing profile like this and then we can design machine by your drawing.
|

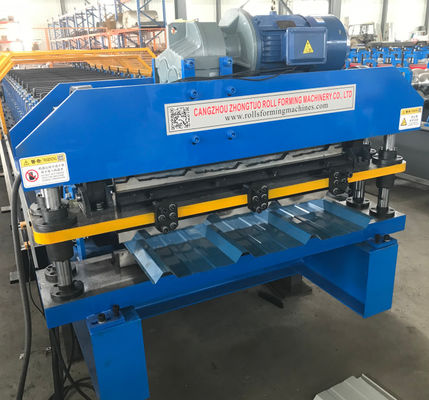

R-Panel R-Panel is a multi-use wall and roof panel used primarily in pre-engineered metal building applications. R-Panel is also a popular choice for residential metal roofing, especially in the Southwest.
|
|
|

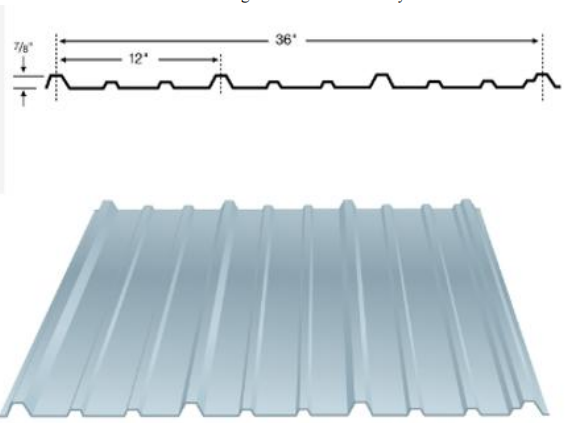

⅞ WIDE RIB PANEL This exposed fastener panel is the ideal choice for rural and agricultural customers. Applications - Roof • Coverage Width - 36" • Rib Height - 7/8" • Panel Attachment - Exposed Fastening System • Gauge - 29 and 26 • Finish Type - Siliconized Polyester • Related Industries: Agricultural, Post-Frame
|

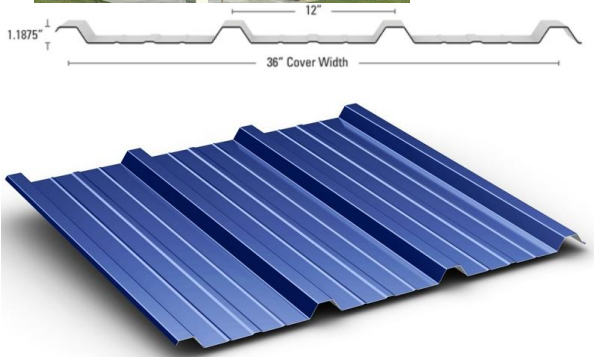

Multi-Rib Panel Machine: Multi-Rib is also commonly utilized for residential roofing, primarily in the Southwestern region. Featuring 1 1/4" major ribs, 12 inches on center, Multi-Rib's bold profile adds a distinct beauty to any home.
|
|

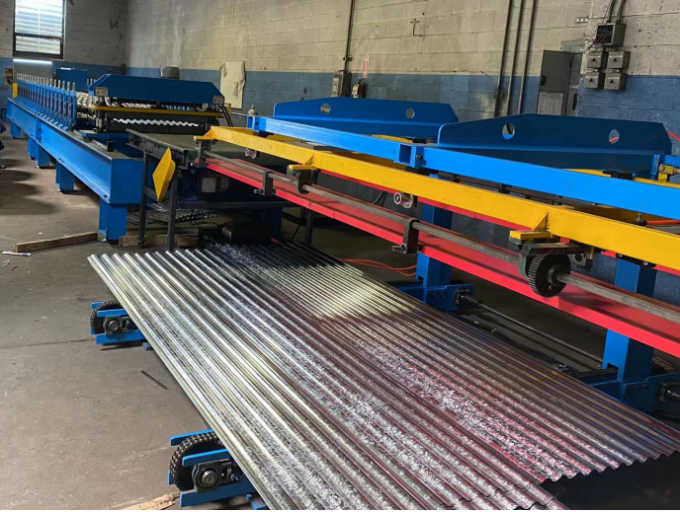

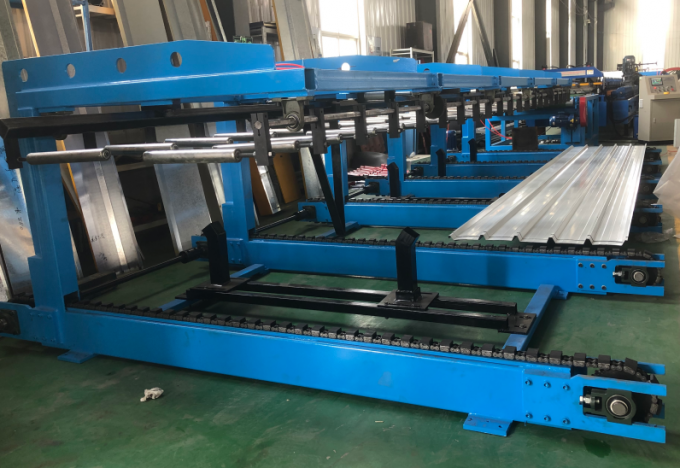

Option 2: High speed NON-STOP single layer machine 45m/min All the drawing profiles could be designed into high speed type. With following design features. 1. With high speed 10 ton decoiler with turnover function or with upbender. 2. With gearbox transmission. 3. With Non-stop servo tracking shearing. 4. With automatic stacker for package. 5. With protection cover. |
 |
|

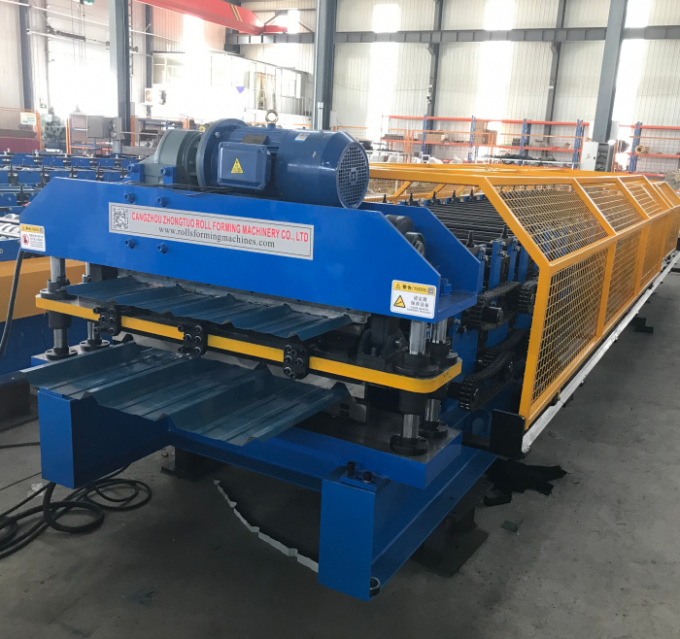

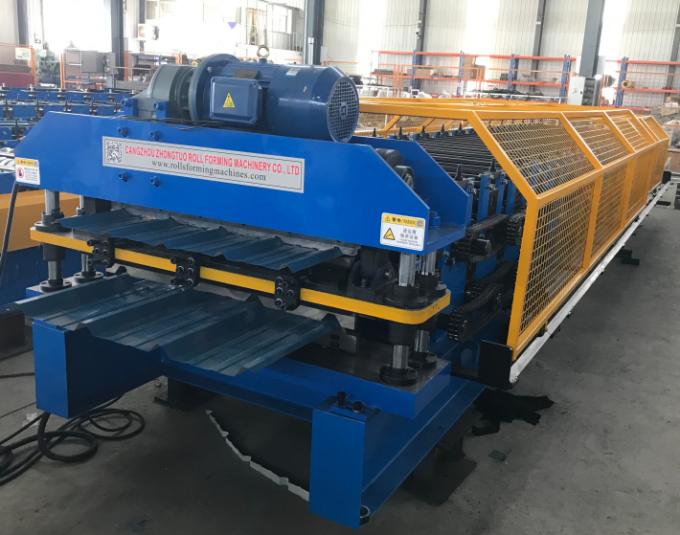

Option 3 : Double Deck Roll Former – PBR, R Panel, Tuff Rib, Ag Panel 36″ wide panel As to the double deck roll former, you either choose any type drawing profile and then make the double deck like PBR panel, R panel, tuffrib panel and others. 1. One machine for two profiles, take up less space. 2. One time one profile working, two layer can not be working at the same time. 3. Lower down the investments cost 4. The shearing either could stop type or not-stop type. 5. The shearing part, you can choose motor shearing or hydraulic shearing
|
 |
|
Automatic hydraulic decoiler:
|
