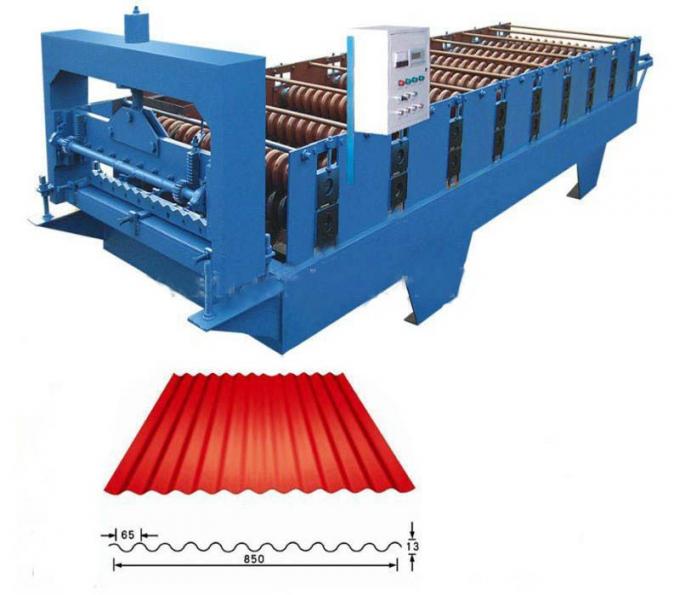

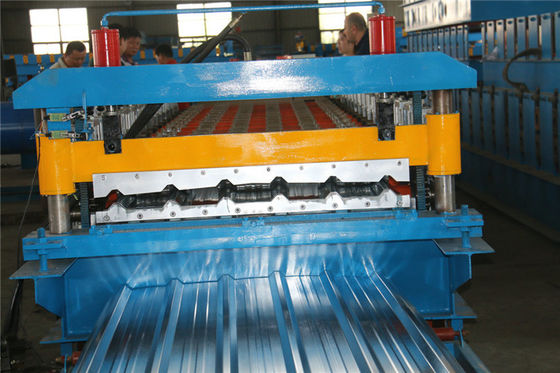

Mould Hydraulic Cutting Roof Panel Roll Forming Machine 15M / Min Processing Speed
Product Description
1. Popular machines
| Mode number | 13-65-850 | 25-210-840 | 25-207-828 |
| Picture |  |
 |
 |
| Main motor power | 3KW | 3KW | 3KW |
| Hydraulic station power | 3KW | 3KW | 3KW |
| Forming steps | 9 steps | 11 steps | 11 steps |
| Roller material | #45, hard chrome | #45, hard chrome | #45, hard chrome |
| Voltage | 380V,50HZ,3Phase | 380V,50HZ,3Phase | 380V,50HZ,3Phase |
| Process speed | 8-15m/min | 8-15m/min | 5-8m/min |
| Feeding width | 1000mm | 1000mm | 1000mm |
| Thickness of sheet | 0.3-0.8mm | 0.3-0.8mm | 0.3-0.7mm |
| Size | 4*1.3*1.2m | 5.7*1.3*1.3m | 5.7*1.3*1.3m |
| Weight | 3T | 4T | 4T |
Packaging&Shipping
1. We have professional technicians for loading to make sure machines load into container without any damage and all included.
2. Usually roll forming machine may need one 40GP to shipping.
3. Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.
Our after-sale service:
Our products are widely used in various industrial factory ,beauty spot, holiday village building, hotel,exhibition ,easy steel building manufacturing ,and have features such as nice appearance and durable.
Within in one year if any parts go broken we will send new ones to replace for free,after the warranty period,we will help you repair the machine ,you only responsible for the labour and parts if the machine have some problems.
