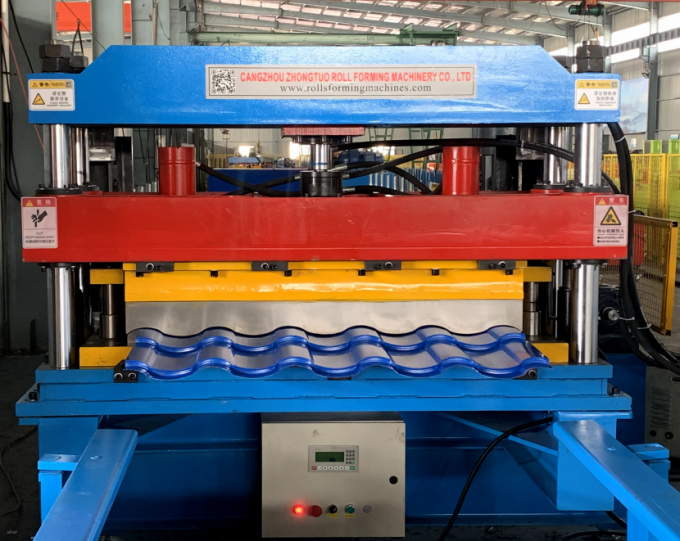

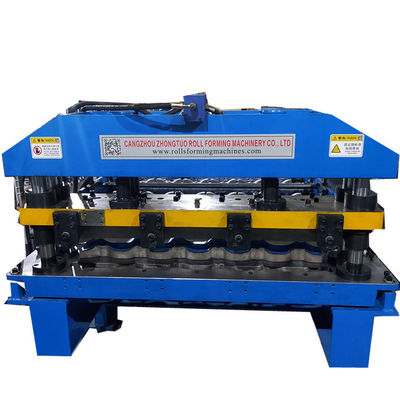

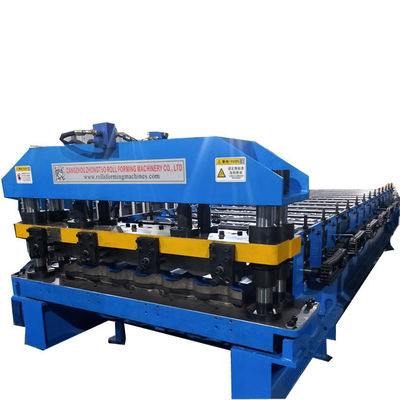

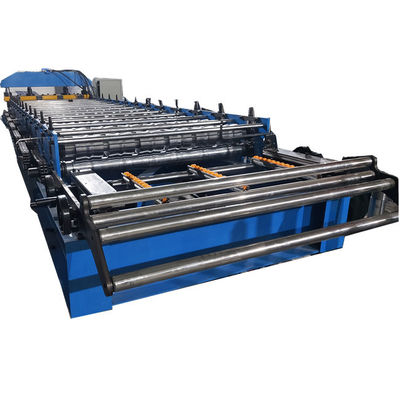

Metal tile 3D model metal roofing sheet rolling forming machine
Metal tile 3D model metal roofing sheet rolling forming machine is designed to make the metal roofing tiles in batch fully automatically. The normal machinable thickness range of our roof panel roll forming machine is 0.3mm-0.5mm, the standard or more used in international market is Gauge 26 (0.45-0.5mm), working raw material is Aluminum, PPGI, Galvanized steel, Galvalume steel etc. Normally for the 3D model metal roofing sheet, the more smaller in range and the more beautiful in the profile shape.

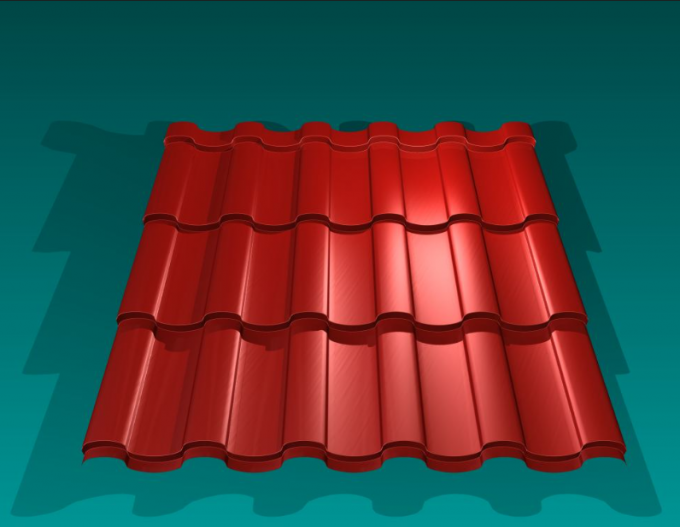

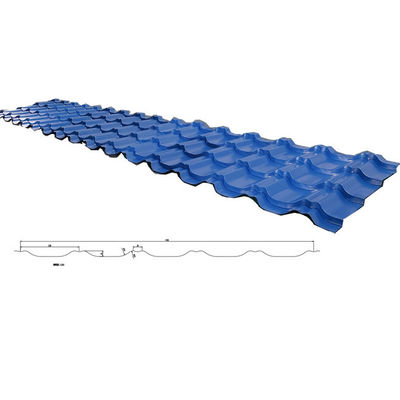

Take the following drawing profile for your reference:
Metal tile 3D model metal roofing sheet rolling forming machine

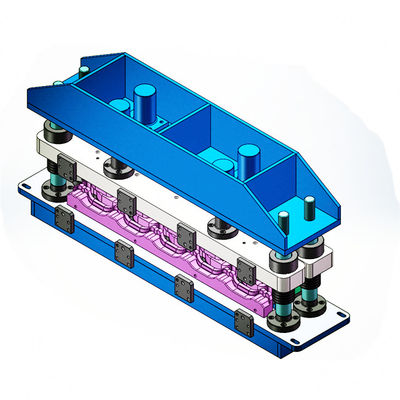

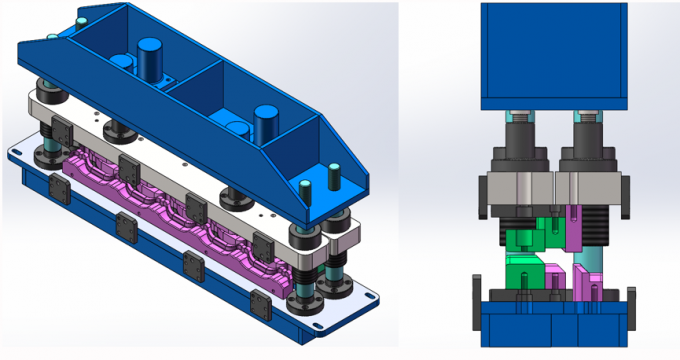

Or we can design it to the middle plate more economic type:
| Guiding device | Placed on the machine by seller |
| Rolling shaft material | 45# STEEL |
| Shaft diameter | 75mm |
| Roller material | 45# STEEL |
| Rolling station | 18 stations |
| Work speed | 7-8m/min |
| Machine basic frame | Steel plate welded |
| Machine body | 400# H steel welded |
| Bearing | Chinese famous brand Harbin |
| Work power | 7.5kw servo motor |
| Transmission | By Chains or gearbox |
| Safety cover | Available |

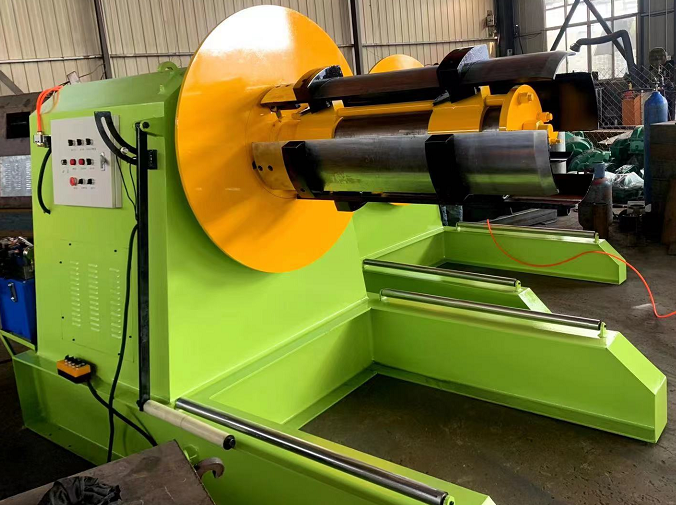

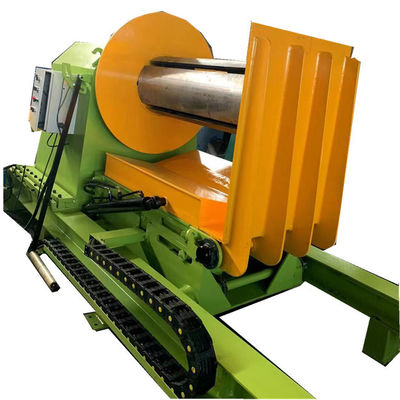

As to the decoiler, you can choose the hydraulic one or manual one depends on your options.
