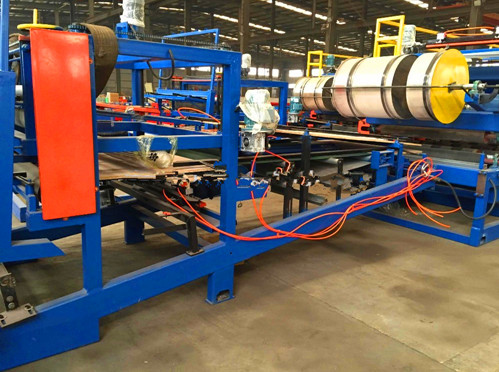

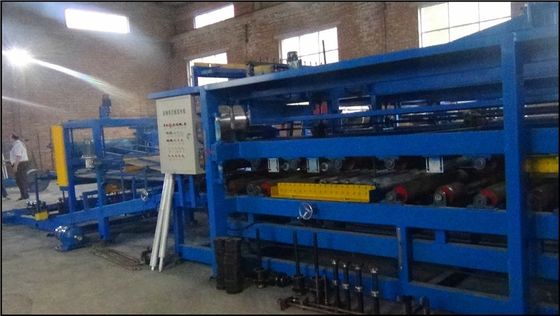

18.5Kw Hydraulic Punching Sandwich Roll Forming Machine PLC Electric Control
Product Application
This type of roof sheet has advantage inclouding beautiful, classical appearance and grace taste.
It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.
|
SPECIFICATIONS FOR ROLL FORMING MACHINE |
|||
|
Main roll forming machine |
Material expand axis | mm | 1000/1200 |
| Working Speed | m/min | 1-3 | |
| roller stations | station | 11 | |
|
Motor power |
Main motor power | kw | 15 |
| Hydraulic Station Power | kw | 3 | |
| Hydraulic Station Pressure | Mpa | 12 | |
|
Otehrs |
Electrical Control System | PLC brand | Panasonic Japan |
| Material Thickness | mm | 80-150mm | |
| Cutting accuracy | mm | ±2 | |
Main Features
Machine Parts
Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment, coated
Main Features
Name:PLC
Brand: Panasonic Japan
Panasonic PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working. In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators.
Machine Parts
Name: Pump
Brand:China
It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.
The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.
Power of The Pump:4kw
Hydraulic oil :40#
Main Features
Name: Encoder
Brand:OMRON
We understand that the encoder is a very important part of the cutting to length system, so we only adopt the best quality from OMRON Japen. And we offer enough matching couplings to make the machine will never shut off due to the encoder problem.
Packaging
1. We have professional technicians for loading.Guaranteed the goods load into container without any damage.
2. Transportation : Machines need one 40 feet container to hold
