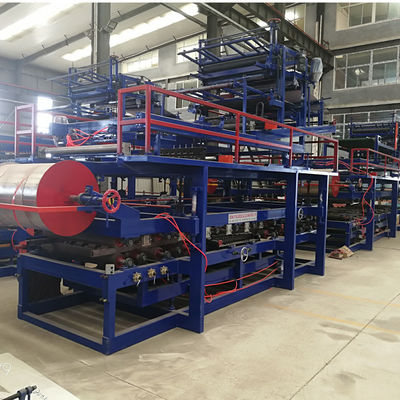

Steel Profile ESP Sandwich Roll Forming Machine for Construction 8--15M/Min
1. Products
2. Process flow
De-coiling--feeding---forming---cutting---finish product
3. Manual decoiler
1> Inside diameter coil is 450 - 550mm
2> Coil Width is 1000 mm
3> Coil load 5 ton

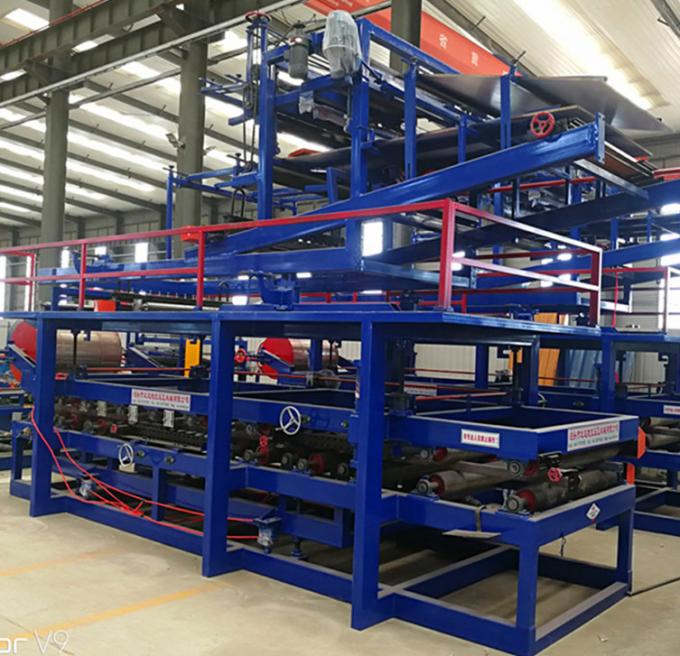

4. Forming device
1> suitable to process:color steel plate or galvanized steel sheet
2> width of the plate:1250mm
3> pass:13passes
4> frame:300H steel
5> roller material:45#steel
6> diameter of the roller:80mm
7> chain/chain wheel:1.2inch
8> power:5.5+3kw
9> thickness of the plate:0.2-0.8mm
10> productivity:8-12m/min
11> size:8*1.4*1.25m
12> material of cutting:Cr12
13> roll forming electric tension:380v 3phase 50hz
14> used:roof and wall panel
5. Hydraulic Cutting device
6. Control Device
1> Screen: Detla screen
2> Automatic length measurement
3> Automatic quantity measurement
4> PLC is used to control length and quantity. Machine will automatically cut to length and stop when required quantity is achieved
5> Length inaccuracy can be amended easily
7. Simple output
Packaging & Shipping
8. package and loading
Our Services
9. Payment and terms
1>30% T/T in advance and balance 70% after inspection confirmation before shipment.
2>Quotation will be valid with in 30 days.Final price should be confirmed.
3>Delivery time : Within 45 working days after receiving deposit.
10. Warranty
1> One year, and we will provide the technical support for the whole life.
2> Training: the buyer should be responsible for visa, return ticket, food and accommodation overseas and USD50/person/day for salary.
3> Need one technicians
4> Training time: one week (contains the time of installation and adjustment)
