High quality High speed metal step tile making machine from China, China's leading product market Roof Roll Forming Machine product, with strict quality control Roof Roll Forming Machine factories, producing high quality Roof Roll Forming Machine Products.

SKU: b56a1ca53d8b Category: Tags: , ,

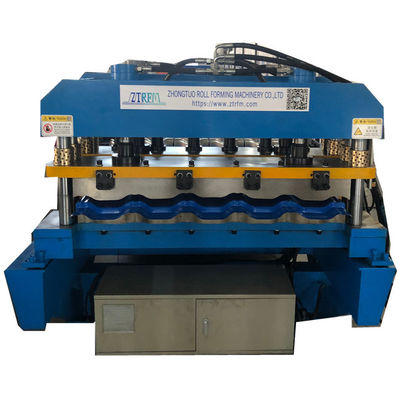

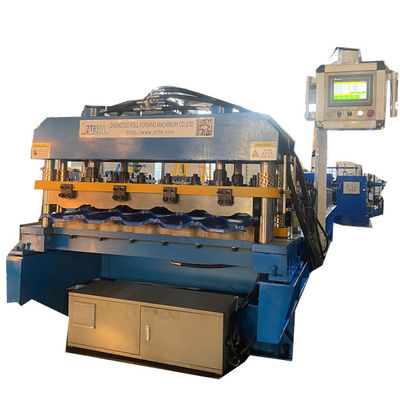

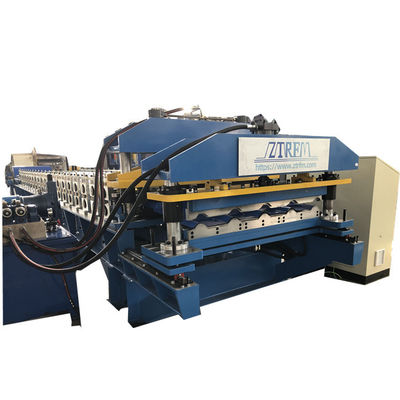

                                                                High speed metal step tile making machine

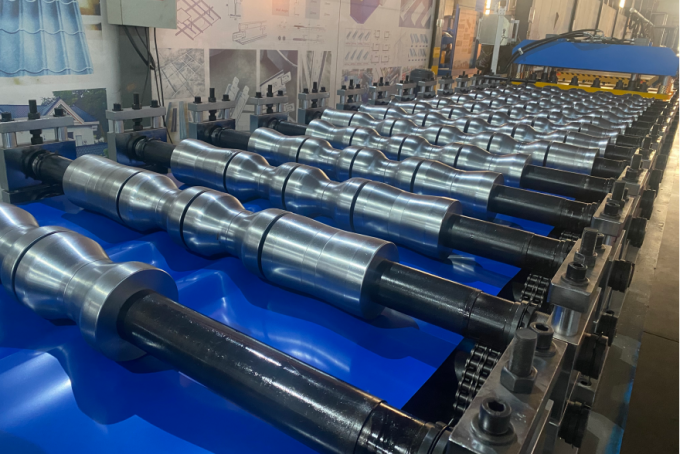

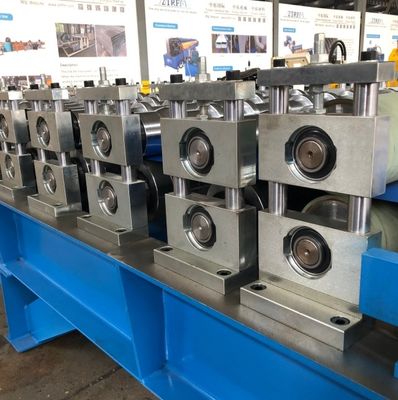

High speed metal step tile making machine is also called glazed tile machine metal tile making machine and also metal roofing sheet machine. We have developed one type high speed which can reach 5 to 12 meter per minute. Take the following drawing profile for example to show you how Zhongtuo design the high speed glazed tile making machine.

Profile requirements:

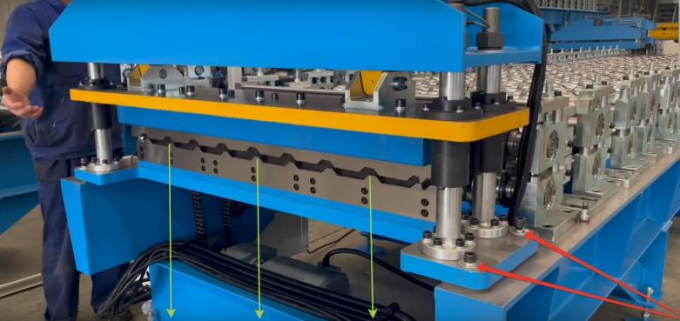

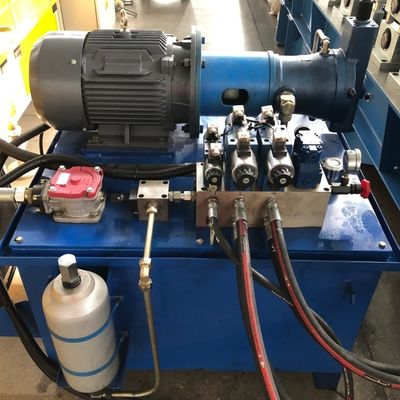

Stepping +hydraulic shearing:

Compression depth: 18mm/24mm Mechanical positioning+shim hand wheel adjustment

Separated rolling, including cutting speed: 7m/min

With 3D shearing and straight cutting also.



For the quality, what we can promise as:

1. Tolerance range as shown in the pattern diagram

2. The waviness shall not exceed 1mm;

3. The error shall not exceed 1 millimeter per meter;

4. Maximum length deviation:+ 1 mm to 2.0 m; 2.0 meters or more plus or minus 0.5 mm/m;

5.When testing and assembling on a flat surface, the maximum gap over the entire length of the covered part should not exceed 1.0mm;

6.The difference between the diagonals of the finished product shall not exceed 2 mm at 1 m of length, and shall not exceed 4 mm at any length;

7.Within an order, the pitch error shall not exceed+0.5 millimeters.

8.Finished product appearance requirements:

9. The protective and decorative coatings on the front and back must not have scratches, wear, cracking, or other damages.

Please check the high speed step tile machine working videos here:
