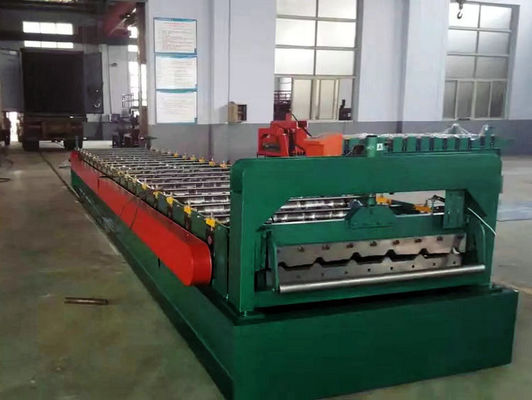

Galvanized Steel Roofing Corrugated Sheet Roll Forming Machine 13-16 Rows
What is the advantage of roofing sheets machine manufacturers?
1. The system is easy to operate and use. PLC: Delta(Can customize as customer require)
2. the surface of the final product is very smooth and beautiful without any scratch on the surface.
3. customized design the machine according to your specification and profile drawing.
What is the specification of roofing sheets machine manufacturers?
| Item | Specification |
| name | roofing sheets machine manufacturers |
| Processing material | color steel,GI,PPGI |
| Processing thickness | 0.3-0.8 mm |
| Diameter of shaft | Φ80mm |
| Electric tension | as the customer's requirements |
| Roller | High grade 45# forged steel (plated chrome plating on surface) |
| coil thickness | 0.05mm |
| Processing precision | within 1mm |
| Transmission | By chain(1inch) link |
| Hydraulic cutting | Controlled by PLC |
| PLC | DELTA(TAIWAN) |
| Material of blades | Cr 12, quenching 58-62℃ |
| Switch | CHNT |
| roller station | to the finnal design |

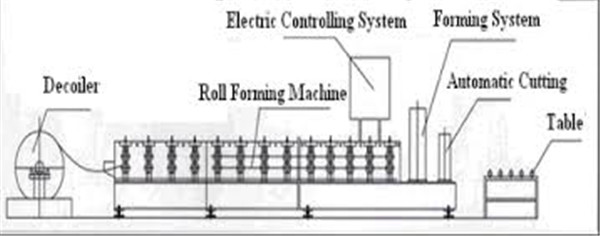

process flow diagram of roofing sheets machine manufacturers

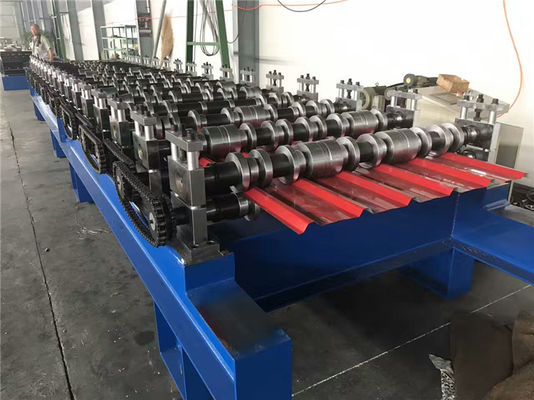

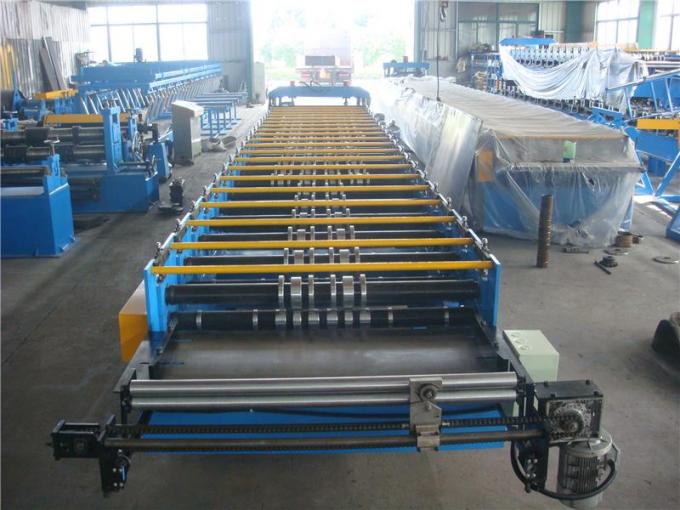

details of rroofing sheets machine manufacturers
